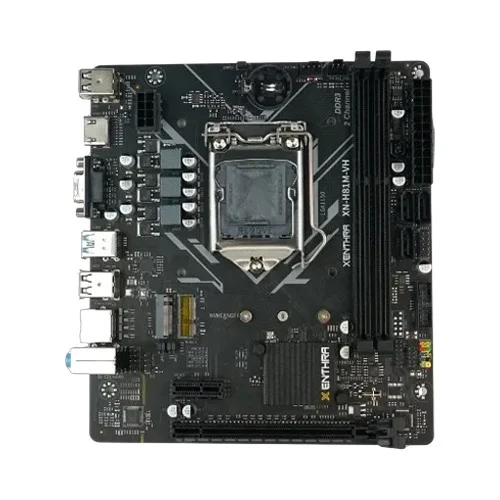

XENTHRA XN-H81M-VH Intel 4th Gen High-Performance Micro-ATX Motherboard

Status
In Stock
2 stores
Lowest 3,900 BDT
Price Range Single price listing
XENTHRA XN-H81M-VH Intel 4th Gen High-Performance Micro-ATX Motherboard

Product Description

Engineered by Intel, this motherboard is featuring a **Micro-ATX** form factor, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **3,900 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-09779 Last Updated: 1 hour ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer XENTHRA XN-H81M-VH Intel 4th Gen High-Performance Micro-ATX Motherboard
In Stock 3,900 2 hours ago
Buy Now
Sell Tech XENTHRA XN-H81M-VH Intel 4th Gen High-Performance Micro-ATX Motherboard
In Stock 3,900 2 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Key Features

Connectors 24-Pin Main ATX Power, 4-Pin 12V CPU Power

Basic Information

Supported CPU Intel 4th Generation Core i7 / i5 / i3, Pentium, Celeron, and Xeon E3-1200 v3 series
Chipset Intel B85 Express Chipset
BIOS UEFI BIOS
Form Factor Micro-ATX (190 mm x 170 mm)
Audio Realtek High-Definition Audio Codec, 3x 3.5mm Audio Jacks

Expansion Slots

PCI 1x PCIe 2.0 x16, 1x PCIe 2.0 x1
M.2 Socket 1x M.2 Slot, Supports NVMe PCIe 2.0 x4 & SATA 3.0 NGFF

Memory

Slots 2x DDR3 DIMM Slots, 1x PCIe 2.0 x16, 1x PCIe 2.0 x1, 1x M.2 Slot, 1x M.2 Wi-Fi / WLAN Slot
Supported Memory DDR3 1600 MHz / 1333 MHz / 1066 MHz, Dual-Channel
Maximum Memory Up to 16 GB (8 GB per slot)

Graphics

Graphics Integrated Graphics Support via compatible CPU

Connector & Ports

HDMI 1x HDMI Port
Display Port (s) 1x HDMI, 1x VGA (D-Sub)
USB (s) 2x USB 3.0, 4x USB 2.0
Front USB Expandable to 4 additional front USB 2.0 ports
LAN Port (s) 1x RJ45 Gigabit LAN
Wireless Communication module M.2 Wi-Fi / WLAN Module Supported
Supported Storage 1x SATA 3.0 (6 Gbps), 2x SATA 2.0 (3 Gbps), 1x M.2 NVMe PCIe 2.0 x4 & SATA 3.0 NGFF
RAID Not Specified
Audio Realtek High-Definition Audio Codec
Internal I/O Ports 2x FUSB 2.0 Headers1x 4-Pin CPU Fan Header1x 3-Pin SYS Fan Header1x 14-Pin TPM 2.0 Port1x Diagnostic Card Interface1x JCMOS1x FPANEL1x Front Audio Header

Network & Connectivity

WiFi Supported via M.2 Wi-Fi / WLAN Slot

Others

Special Features 4-Layer PCB, Dual-Channel DDR3, M.2 Storage Support, TPM 2.0 Header
Bundled Software Not Specified

Warranty Information

Warranty As per the manufacturer/seller warranty policy
Part ID: #CAN-09779 Last Updated: 1 hour ago
