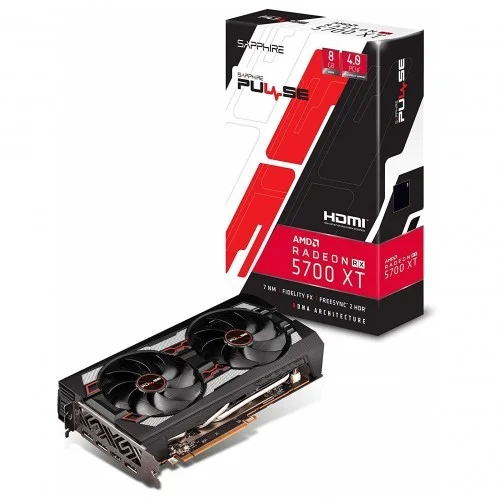

Specifications: Video Memory Specifications Type GDDR6 Size 8GB Resolution HDMI: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz Game Index: Extreme 1440P Core Clock Boost Clock: Up to 1750 MHz Game Clock: Up to 1700 MHz Base Clock: 1540 MHz Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary Memory Clock 14 Gbps Effective BUS Type 256 bit Memory Interface PCI Express 4.0 Stream Processors 2304 Others Sapphire Features: Power Design Free Flow TriXX Supported TriXX Boost Intelligent Fan Control IV Precision Fan Control Robust VRM Cooling Robust Memory Cooling Dual-X Cooling Technology Tough Metal Backplate PCB Layers Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS AMD Features: RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon™ Software Radeon™ Boost Image Sharpening Radeon™ Anti-Lag AMD FidelityFx Async Compute Rays Audio + True Audio Next Radeon™ FreeSync™ 2 HDR VR Ready Premium Interface Display Port 3x DisplayPort 1.4 HDMI 1x HDMI Power Specifications Connectors 1 x 8-pin Power Connector 1 x 6-pin Power Connector Recommended PSU Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply) Consumption 187W Display Option Multi Display Yes ( Maximum 4 Outputs ) Application Programming Interfaces DirectX 12 OpenGL 4.6 Physical Specifications Dimensions 254 x 135 x 46.5 mm Others Cooling: Dual-X Cooling Dual Fan Two-Ball Bearing Form Factor: 2.3 slot, ATX Warranty Manufacturing Warranty 2 Years Warranty Sapphire Pulse Radeon RX 5700 8GB GDDR6 Graphics Card The Sapphire Pulse Radeon RX 5700 8GB GDDR6 Graphics Card offers great performance at the affordable price point that every gamer needs. With quality components and a robust digital power design, the PULSE RX 5700 delivers exceptional 1440p performance and high-fidelity gaming powered by AMD’s new extreme RDNA architecture. Its finely-tuned Dual-X Cooling Technology not only keeps the GPU, memory and VRM components cool, but also at a very low noise level. The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out, and it also helps cool your card by increasing heat dissipation. Pivotal SAPPHIRE features like the Quick Connect Fan, Dual Bios Support and Power Fuse are all readily available to keep your GPU running smooth and silent. Unleash your full gaming potential and embrace the SAPPHIRE PULSE RX 5700 as the beating heart of your PC! COMPARE SAPPHIRE PULSE GRAPHICS CARD SAPPHIRE GPU RECOMMENDED PSU Sapphire Pulse Radeon RX 550 4GB GDDR5 Graphics Card 400 Watt (Recommended) Sapphire Pulse Radeon RX 570 4GB GDDR5 HDMI DP Graphics card 500 Watt Sapphire Pulse Radeon RX 570 8GB GDDR5 Graphics Card 500 Watt Sapphire Pulse Radeon RX 5700 XT 8GB GDDR6 Graphics Card Recommended 650 Watt Sapphire Pulse Radeon RX 5600 XT 6GB GDDR6 Graphics Card Recommended 500 Watt Sapphire Pulse Radeon RX 5700 8GB GDDR6 Graphics Card Recommended 650 Watt Sapphire PULSE AMD Radeon RX 6700 XT GAMING OC 12GB GDDR6 Graphics Card Minimum 650 Watt Sapphire Pulse AMD Radeon RX 6400 4GB GDDR6 Graphics Card 350 Watt Sapphire Pulse AMD Radeon RX 6500 XT Gaming OC 4GB GDDR6 Graphics Card Minimum 400 Watt Sapphire Pulse AMD Radeon RX 6600 Gaming 8GB GDDR6 Graphics Card 500 Watt Sapphire Pulse AMD Radeon RX 6600 XT Gaming OC 8GB GDDR6 Graphics Card Minimum 500 Watt Sapphire Pulse AMD Radeon RX 6800 OC Gaming 16GB GDDR6 Graphics Card 650 Watt Sapphire Pulse AMD Radeon RX 6800 XT 16GB GDDR6 Graphics Card 750 Watt ..
