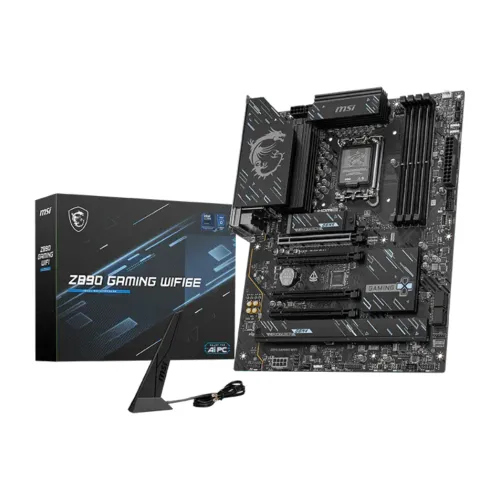

MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard

Status
In Stock
3 stores
Lowest 35,500 BDT
Price Range 35,500 to 36,000 BDT Save 1%
MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard

Product Description

Upgrade Your Gaming Experience with the MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard

The MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard is designed for serious gamers and PC enthusiasts who demand exceptional performance, advanced features, and seamless connectivity. With its cutting-edge design and robust capabilities, this motherboard is the perfect choice for building a powerful gaming rig.

Key Features

The MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard boasts the following key features and benefits:

  • Supports Intel Core Ultra Series 2 processors through the LGA 1851 socket
  • Four DDR5 UDIMM slots with a maximum capacity of 256GB and overclocking speeds up to 8800+ MT/s
  • Four PCIe x16 slots, with the primary slot running PCIe 5.0 x16 directly from the CPU
  • Three M.2 slots supporting PCIe 5.0 and PCIe 4.0 NVMe drives, with the third slot also supporting SATA mode
  • Realtek ALC897 7.1-channel high-definition audio for immersive sound
  • Realtek 8125D 2.5Gbps LAN for fast wired networking
Advanced Technologies and Features

The MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard features a range of advanced technologies and features, including:

Wi-Fi 6E and Bluetooth 5.3 for seamless wireless connectivity and low latency

Addressable V2 RGB headers and standard RGB header for extensive lighting customization options

4 system fan headers, a CPU fan header, and a combo pump and system fan header for comprehensive cooling control

4 EZ Debug LEDs simplify troubleshooting during system builds and upgrades

TPM 2.0 header adds hardware-level security support for Windows 11 systems

Part ID: #CAN-01205 Last Updated: 3 weeks ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard
In Stock 35,500 1 week ago
Buy Now
Creatus Computer MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard
In Stock 36,000 4 hours ago
Buy Now
Skyland BD MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard
In Stock 36,000 3 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Core Ultra Processors (Series 2)
Chipset INTEL Z890
Form Factor ATX 243.84mmx304.8mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
M.2 Socket 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory 256GB

Graphics

Graphics 1x HDMI 2.1 1x DisplayPort 1.4

Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN Port (s) Realtek 8125D 2.5Gbps LAN
Wireless Communication module Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features LED FEATURE: 4x EZ Debug LED

Warranty Information

Manufacturing Warranty 3 Years Warranty

Key Features

Model Z890 GAMING WIFI6E
Supported CPU Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM 4x DDR5 UDIMM, Up to 8800 (OC) MT/s, Max 256GB
Graphics Output 1x HDMI 2.1, 1x DisplayPort 1.4
Features 3x M.2, Realtek 8125D 2.5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3
Part ID: #CAN-01205 Last Updated: 3 weeks ago
