Product Description

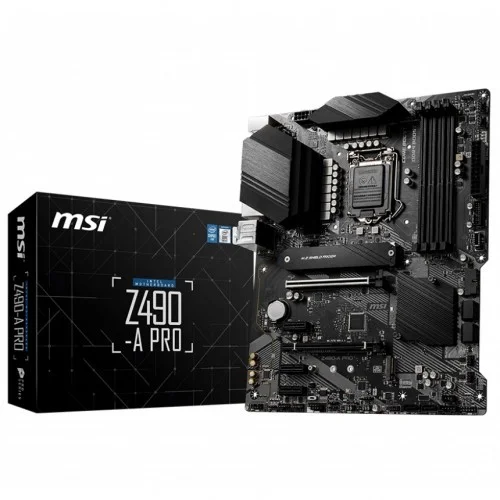

Upgrade Your PC Experience with the MSI Z490-A PRO
Designed for professionals and enthusiasts alike, the MSI Z490-A PRO motherboard is built to deliver an efficient and productive experience. With its stable functionality, high-quality assembly, and optimized professional workflows, this motherboard helps you work smarter, not harder.
Key Features and Benefits
- Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
- Intel Z490 Chipset for exceptional performance and features
- Dual-Channel DDR4 memory support for up to 128GB of RAM
- 2x M.2 slots for high-speed storage and PCIe 3.0 x4 support
- Realtek RTL8125B-CG 2.5G LAN Controller for fast networking
- Multi-GPU support for AMD CrossFire Technology
MSI's Proprietary Technologies
The MSI Z490-A PRO motherboard features MSI's innovative technologies, designed to enhance performance and durability. MSI's extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors run smoothly, while the M.2 SHIELD FROZR provides exceptional thermal protection for your SSDs, maintaining their maximum performance.
Upgrade Your PC Experience with the MSI Z490-A PRO
Part ID: #CAN-02091
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Key Features
Form Factor
ATX
Basic Information
Supported CPU
Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
Chipset
Intel Z490 Chipset
Form Factor
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Memory
Ram Type
DDR4
Type
Dual-Channel mode
Slots
4x DDR4 memory slots
Supported Memory
Supports 1R 2133/2666/2933 MHz 1 1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4500+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Mamory
support up to 128GB
Expansion Slots
PCI
1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH, supports x4 mode) 3x PCIe x1 slots (from PCH)
M.2 Socket
2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Graphics
Graphics
1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz MULTI-GPU Supports 2-Way AMD CrossFire Technology
Connector & Ports
HDMI
1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
Display Port (s)
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
USB (s)
Intel Z490 Chipset 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel) 7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
LAN Port (s)
1x Realtek RTL8125B-CG 2.5G LAN Controller
Supported Storage
Intel® Z490 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio
Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O Ports
1x 24-pin ATX main power connector 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector Clear CMOS jumper 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x serial port connector TPM module connector 1x TBT connector
Warranty Information
Manufacturing Warranty
03 years warranty
