Product Description
Unlock Unbridled Gaming Performance

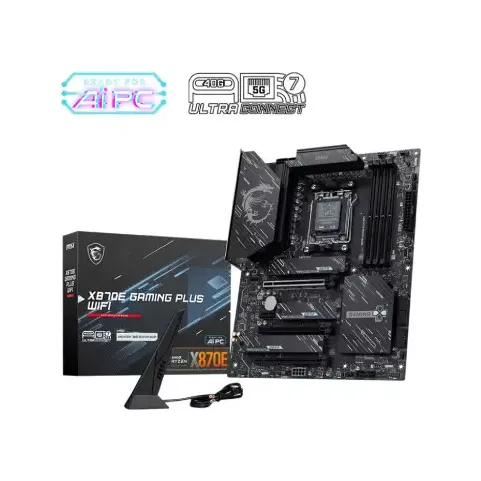

Designed specifically for enthusiasts and power users, the MSI X870E GAMING PLUS WIFI DDR5 AM5 ATX Motherboard empowers you to dominate even the most demanding gaming sessions. With its cutting-edge features and robust build quality, this motherboard is the perfect foundation for your next high-performance gaming rig.
Key Features and Benefits- Supports 13th Gen AMD Ryzen AM5 processors for unparalleled processing power
- Wi-Fi 6E technology for seamless wireless connectivity and reduced latency
- Quad M.2 slots for expanded storage and high-speed data transfer
- High-quality audio capacitors and a dedicated audio circuit for immersive sound
- Supports up to 128GB DDR5 memory for enhanced multitasking and performance
The MSI X870E GAMING PLUS WIFI DDR5 AM5 ATX Motherboard incorporates several innovative technologies to ensure optimal performance and reliability:
MSI's Proprietary Cooling Technology provides efficient heat dissipation and minimizes throttling, allowing for smooth operation even under intense workloads.
Advanced Power Delivery ensures stable power delivery to your CPU and other components, reducing the risk of voltage fluctuations and damage.
Part ID: #CAN-01464
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek 8126VB 5G LAN
USB
1x Type-C DisplayPortUSB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz4x USB 2.0 (Rear)6x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)4x USB 5Gbps Type A (Front)2x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear)1x USB 40Gbps Type C (Rear)
HDMI
1x HDMISupport HDMITM 2.1, maximum resolution of 4K 60Hz
WiFi
Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ be
Audio
Realtek ALC8977.1-Channel High Definition Audio
Slots
3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8200+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 6000+ MT/s
Chipset
AMD X870E
Graphics
1x HDMISupport HDMITM 2.1, maximum resolution of 4K 60Hz*1x Type-C DisplayPortUSB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
Warranty
3-Years
Bluetooth
Supports Bluetooth 5.4**, MLO, 4KQAM
Form Factor
ATX243.84mmx304.8mm
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Other Features
• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Operating System
Support for Windows 11 64-bit
Special Features
4x EZ Debug LED1x EZ Memory Detection LED
Supported Storage
3x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices4x SATA 6GM2_1 slot• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
External I/O Ports
Clear CMOS ButtonUSB 5Gbps Type-AUSB 10Gbps Type-AUSB 2.05G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonHDMIUSB 40Gbps Type-CUSB 2.0USB 20Gbps Type-CUSB 5Gbps Type-A
Internal I/O Ports
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)6x System Fan1x EZ Conn-header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)6x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
