Product Description

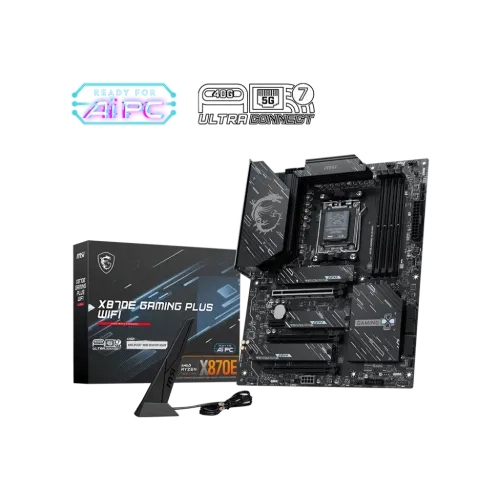

Unleash Your Gaming Potential with the MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
Designed for enthusiasts, gamers, and creators, this powerful motherboard is built on the AMD X870E chipset and supports the latest AMD Ryzen 9000, 8000, and 7000 Series CPUs on the AM5 socket for future-proof performance and compatibility.
With its advanced features and cutting-edge connectivity, the MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard is the perfect choice for building a high-performance gaming rig or a professional workstation.
Key Features and Benefits
Unlock Unmatched Performance with:
- Support for up to 256GB of DDR5 memory at speeds of up to DDR5-8200+ MT/s
- Three PCIe x16 slots, including one PCIe 5.0 x16 slot directly from the CPU
- Three M.2 slots with one PCIe 5.0 x4 slot and four SATA 6Gbps ports
- Realtek 8126VB 5G LAN and a built-in Wi-Fi 7 module with 802.11be, MU-MIMO, and Bluetooth 5.4
- Extensive USB connectivity, including USB4 40Gbps Type-C, USB 20Gbps Type-C, and multiple USB 5Gbps and 2.0 ports
Advanced Technologies and Cooling Solutions
Experience the Power of MSI's Proprietary Technologies:
The MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard features MSI's Frozr Guard cooling system, including an extended heatsink, 7W/mK MOSFET thermal pads, choke thermal pads, and EZ M.2 Shield Frozr II, delivering reliable thermal regulation during intense workloads.
The board also includes a 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, and an 8-layer PCB with 2oz thickened copper for enhanced thermal and electrical performance.
Part ID: #CAN-01136
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology
MSI X870E GAMING PLUS WIFI AMD AM5 ATX Motherboard
|
In Stock | 38,500 | 4 hours ago | |
|
Nexus Computer
MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
|
In Stock | 38,600 | 4 hours ago | |
|
Sell Tech
MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
|
In Stock | 38,800 | 4 hours ago | |
|
Star Tech
MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
|
In Stock | 38,900 | 1 week ago | |
|
Skyland BD
MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
|
In Stock | 39,900 | 4 hours ago | |
|
Creatus Computer
MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
|
In Stock | 39,999 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD X870E
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket
3x M.2
Memory
Type
DDR5
Slots
4x DIMMs
Supported Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. Overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x Type-C DisplayPort
USB (s)
4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
LAN Port (s)
Realtek 8126VB 5G LAN
Wireless Communication module
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID
• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
X870E GAMING PLUS WIFI
Supported CPU
Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 8200 (OC) MT/s
Graphics Output
1x HDMI, 1x Type-C DisplayPort
Features
Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01136
Last Updated: 1 month ago
