Product Description

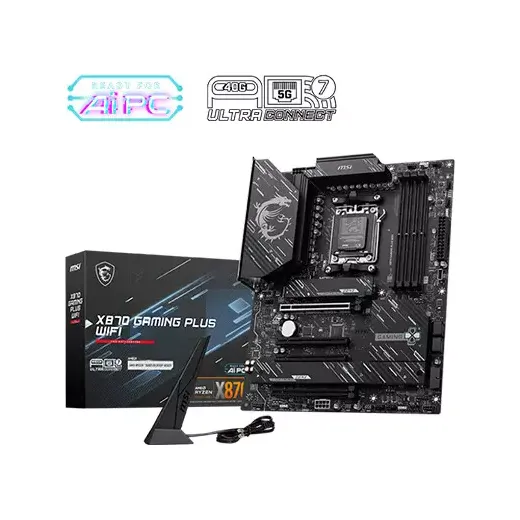

Engineered by MSI, this motherboard is designed for **AM5** socket processors and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **39,000 ৳**, compared dynamically across 4 major computer shops.
Part ID: #CAN-01468
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology
MSI X870 GAMING PLUS WIFI DDR5 AM5 Motherboard
|
In Stock | 39,000 | 2 hours ago | |
|
TechLand BD
MSI X870 GAMING PLUS WIFI DDR5 AM5 Motherboard
|
In Stock | 39,900 | 2 hours ago | |
|
UCC
MSI X870 GAMING PLUS WIFI DDR5 AMD AM5 ATX Motherboard
|
In Stock | 39,900 | 2 hours ago | |
|
PCB Store
MSI X870 Gaming Plus WiFi DDR5 AM5 Socket Motherboard
|
Check Stock | 39,900 | 2 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek 8126VB 5G LAN
USB
4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)2x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear)1x USB 40Gbps Type C (Rear)
Audio
Realtek ALC8977.1-Channel High Definition Audio
Brand
MSI
Model
X870 GAMING PLUS WIFI
Wi-Fi
Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ be
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8200+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 6000+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only*
Chipset
AMD X870
Storage
3x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices4x SATA 6GM2_1 slot• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
Graphics
1x HDMISupport HDMITM 2.1, maximum resolution of 4K 60Hz*1x Type-C DisplayPortUSB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
I/O Port
Internal IO 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)6x System Fan1x EZ Conn-header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type-C portBACK PANEL PORTSClear CMOS ButtonUSB 5Gbps Type-AUSB 10Gbps Type-AUSB 2.05G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonHDMIUSB 40Gbps Type-CUSB 2.0USB 20Gbps Type-CUSB 5Gbps Type-A
Warranty
3-Years
Bluetooth
Supports Bluetooth 5.4**, MLO, 4KQAM
Form Factor
ATX, 243.84mmx304.8mm
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
LED Indicators
4x EZ Debug LED
Other Features
RAID: ••Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Expansion Slots
4x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Operating System
Support for Windows 11 64-bit
Part ID: #CAN-01468
Last Updated: 2 days ago
MSI X870 GAMING PLUS WIFI is designed for high-performance computing, supporting the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors with the AM5 socket. Powered by the AMD X870 chipset, it delivers excellent stability and performance for gaming and productivity.Advanced DDR5 Memory PerformanceThis motherboard features 4x DDR5 UDIMM slots with support for up to 256GB of memory. It supports speeds ranging from DDR5 8200+ (OC) to 4800 MT/s, depending on the configuration. Users can take advantage of AMD EXPO technology, dual-channel memory, and overclocking capabilities for top-tier performance.High-Speed Storage OptionsWith 3x M.2 slots and 4x SATA 6G ports, the X870 provides robust storage expandability. The M.2_1 slot supports PCIe 5.0 x4 for Ryzen 9000/7000 processors and PCIe 4.0 x4 for Ryzen 8000 processors, enabling blazing-fast read/write speeds. RAID 0, 1, and 5 support ensures reliability and performance for NVMe storage.Graphics and Display SupportThe motherboard includes 1x HDMI 2.1 port supporting 4K at 60Hz and a USB4 Type-C port with DisplayPort 1.4, offering flexible and high-quality display output options.Next-Gen Networking and ConnectivityEquipped with Realtek 8126VB 5G LAN and Wi-Fi 7, users enjoy ultra-fast networking with low latency. It also supports Bluetooth 5.4 for seamless wireless connections.Superior Audio and ExpansionThe integrated Realtek ALC897 7.1-channel audio codec ensures immersive sound quality. Expansion options include 4 PCI-E slots, with the primary slot supporting PCIe 5.0 x16, making it ready for the latest GPUs.Rich I/O and Software CompatibilityThe board offers an extensive array of USB ports, including USB 40Gbps Type-C, USB 20Gbps Type-C, and multiple 10Gbps and 5Gbps ports. It supports Windows 11 64-bit and comes in an ATX form factor for wide compatibility.FeaturesSupports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors (AM5 socket)AMD X870 chipset for powerful performance and stability4x DDR5 UDIMM slots, up to 256GB, speeds up to 8200+ MT/s (OC)Supports AMD EXPO, Dual-Channel mode, and memory overclocking3x M.2 slots (PCIe 5.0 / 4.0) + 4x SATA 6G portsPCIe 5.0 x16 slot for latest-generation GPUsHDMI 2.1 (4K @ 60Hz) + USB4 Type-C with DP 1.4 supportRealtek 8126VB 5G LAN + Wi-Fi 7 + Bluetooth 5.4Realtek ALC897 7.1-channel high-definition audioMultiple USB ports: USB 40Gbps Type-C, USB 20Gbps Type-C, USB 10Gbps, USB 5Gbps, and USB 2.0RAID support: RAID 0, 1, 5 for NVMe M.2 storageATX form factor with rich expansion slots and RGB headersDesigned for Windows 11 64-bit compatibility..
