Product Description

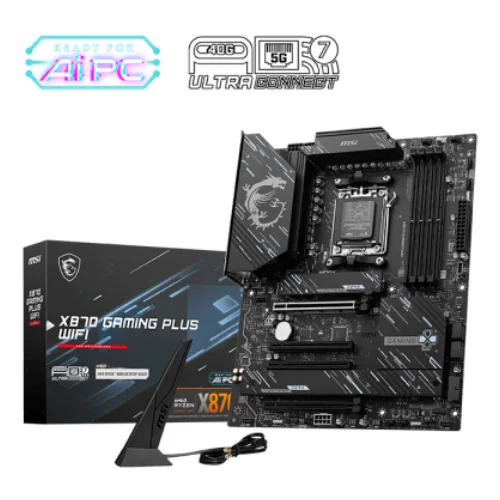

Unleash Gaming Excellence with MSI X870 GAMING PLUS WIFI AM5 Motherboard
Welcome dedicated gamers and professionals seeking a powerful, reliable, and customizable platform for their next-generation computing needs. The MSI X870 GAMING PLUS WIFI AM5 Motherboard offers a perfect balance of performance, connectivity, and ease of use, making it an ideal choice for those who demand the best.
Key Features and Benefits
- Supports AMD Ryzen 9000/8000/7000 Series Processors for Socket AM5, providing unparalleled performance and efficiency
- Features high-speed DDR5 memory with rates exceeding 8200+ MT/s, ensuring fast data transfer and processing
- Equipped with cutting-edge Wi-Fi 7, 5G LAN compatibility, and superior USB4 connectivity for rapid network performance
- Offers numerous storage options, including a PCIe 5.0 x16 slot and lightning Gen5 x4 M.2 slots with EZ M.2 Shield Frozr II
- Enhanced by MSI's signature EZ DIY features and refined audio enhancements with Audio Boost technology for studio-grade sound
Advanced Technologies and Features
MSI's Signature Technologies
The MSI X870 GAMING PLUS WIFI AM5 Motherboard features MSI's patented Core Boost and Memory Boost technologies, ensuring stable power supply and optimal memory performance. The board also boasts an 8-layer PCB made of 2oz thicker copper, providing ultra-stable power supply even during intense, long sessions.
Part ID: #CAN-01385
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI X870 GAMING PLUS WIFI AM5 Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Creatus Computer
MSI X870 GAMING PLUS WIFI AM5 Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
Skyland BD
MSI X870 GAMING PLUS WIFI AM5 Motherboard
|
In Stock | 38,799 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD X870
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket
3x M.2
Memory
Type
DDR5
Slots
4x UDIMM
Supported Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x Type-C DisplayPort 1.4
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
LAN Port (s)
Realtek 8126VB 5G LAN
Wireless Communication module
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage
4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports
RAID
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Digit Debug LED
Warranty Information
Manufacturing Warranty
3 Years Warranty
Key Features
Model
X870 GAMING PLUS WIFI
Supported CPU
Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5 8200 (OC) MT/s
Graphics Output
1x HDMI, 1x Type-C Display Port
Features
Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01385
Last Updated: 1 month ago
