Product Description
Engineered by MSI, this motherboard is featuring a **ATX** form factor and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. This item is currently out of stock or unavailable at our tracked local computer stores in Bangladesh.
Part ID: #CAN-01207
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech

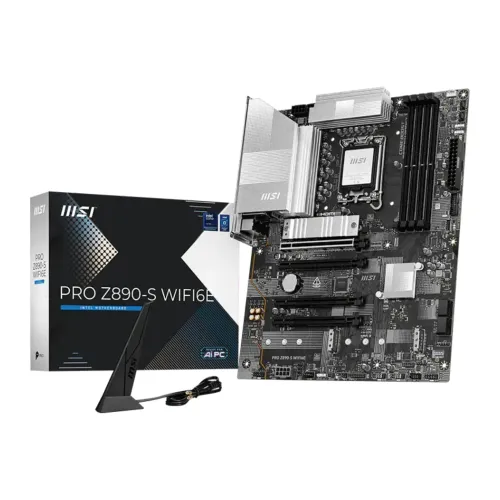

MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard
|
In Stock | Call for Price | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Core Ultra Processors (Series 2)
Chipset
INTEL Z890
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI
4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
M.2 Socket
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
Memory
Type
DDR5
Slots
4x UDIMM
Supported Memory
Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory
256GB
Graphics
Graphics
1x HDMI 2.1 1x DisplayPort 1.4
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4
USB (s)
4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN Port (s)
Realtek 8125D 2.5Gbps LAN
Wireless Communication module
Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 Years Warranty
Key Features
Model
PRO Z890-S WIFI6E
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
4x DDR5 UDIMM, Up to 8800 (OC) MT/s, Max 256GB
Graphics Output
1x HDMI 2.1, 1x DisplayPort 1.4
Features
3x M.2, Realtek 8125D 5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3
Part ID: #CAN-01207
Last Updated: 2 days ago
The MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard supports Intel Core Ultra Series 2 processors through the Intel Z890 socket. This Motherboard includes four DDR5 slots supporting 256GB memory, DDR5 8800 overclocking, Intel XMP 3.0, and dual-channel architecture for stable gaming performance. MSI DDR5 Motherboard technology supports non-ECC unbuffered memory, CUDIMM modules, Intel POR speeds, and optimized overclocking performance for professional multitasking environments and content creation workloads. MSI PRO Z890-S WIFI6E LGA 1851 Motherboard provides HDMI 2.1 and DisplayPort 1.4 outputs supporting smooth 4K 60Hz visuals with compatible processors for multimedia entertainment. MSI ATX Motherboard expansion includes PCIe 5.0 x16 connectivity, PCIe 4.0 slots, and flexible bandwidth options supporting advanced graphics cards and peripherals for enthusiasts everywhere. MSI PRO Z890-S WIFI6E ATX Motherboard features Realtek ALC897 7.1-channel audio, delivering immersive sound quality for gaming, streaming, productivity, and entertainment experiences during everyday usage. MSI Motherboard storage options include three M.2 slots, PCIe 5.0 NVMe support, SATA compatibility, RAID functionality, and four reliable SATA 6G ports for flexible storage. MSI PRO Z890-S WIFI6E Motherboard offers extensive connectivity through USB 20Gbps Type-C ports, multiple USB 5Gbps connections, and convenient front USB headers for modern devices. MSI LGA 1851 Motherboard integrates Realtek 2.5Gbps LAN, Wi-Fi 6E technology, Bluetooth 5.3, and MU-MIMO support for dependable high-speed wireless networking across homes and offices. MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard includes dedicated power connectors, multiple cooling headers, RGB connectors, and TPM 2.0 compatibility for secure system management. MSI ATX Motherboard design features EZ Debug LEDs, chassis intrusion support, Windows 11 compatibility, and durable PCB construction for dependable long-term reliability under continuous workloads.Buy MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard from Star TechIn Bangladesh, you can get original MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price.The MSI PRO Z890-S WIFI6E LGA 1851 ATX Motherboard has 3 year warranty.
