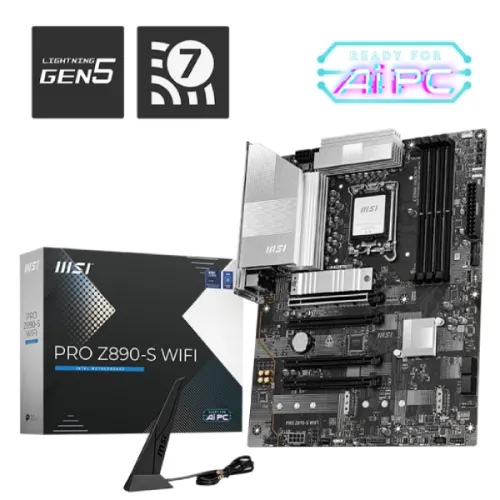

MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard

Status
In Stock
4 stores
Lowest 35,000 BDT
Price Range Single price listing
MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard

Product Description

MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard

The MSI PRO Z890-S WIFI LGA 1851 ATX motherboard is designed for enthusiasts and professionals seeking a high-performance platform for their systems. With its support for Intel Core Ultra Processors (Series 2) and LGA 1851 socket, this motherboard provides exceptional performance and durability.

Key Features and Benefits

  • Supports up to 8800+ MT/s (OC) DDR5 memory with a maximum capacity of 256GB
  • Features three M.2 slots, four SATA 6G connections, and RAID configurations for versatile storage options
  • Includes HDMI 2.1, DisplayPort 1.4, and a Type-C DisplayPort supporting resolutions up to 8K
  • Equipped with Intel Wi-Fi 7, Bluetooth 5.4, and 2.5G LAN for reliable networking
  • Supports PCIe 5.0 slots, Lightning Gen 5 x4 M.2, and a Thunderbolt 4 connection for fast data transfer

Advanced Technologies and Cooling Solutions

The MSI PRO Z890-S WIFI motherboard features a 6-layer server-grade PCB, dual 8-pin CPU power connectors, and a sturdy 12+1+1+1 Duet Rail Power System for excellent power supply and stability. Additionally, it includes cooling solutions such as the M.2 Shield Frozr, 7W/mK MOSFET thermal pads, and expanded heatsink to improve thermal efficiency.

Connectivity and Expansion

The motherboard offers a range of connectivity options, including four USB 20Gbps Type-C connections, four USB 2.0 ports, and six USB 5Gbps Type A ports. It also features a Thunderbolt 4 connection, supporting 40Gbps transfer speeds, 8K displays, and USB 4.0 compatibility.

Part ID: #CAN-01129 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
In Stock 35,000 1 week ago
Buy Now
Creatus Computer MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
In Stock 36,500 5 hours ago
Buy Now
Ultra Technology MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
In Stock 36,500 4 hours ago
Buy Now
Skyland BD MSI PRO Z890-S WIFI LGA 1851 ATX Motherboard
In Stock 36,700 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset INTEL Z890
Form Factor ATX 243.84mmx304.8mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
M.2 Socket 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory 256GB

Graphics

Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
USB (s) 4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN Port (s) Realtek 8125D 2.5Gbps LAN
Wireless Communication module Intel Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports

Others

Special Features 4x EZ Debug LED

Warranty Information

Manufacturing Warranty 3 Year warranty

Key Features

Model PRO Z890-S WIFI
Supported CPU Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM 4x DDR5, Dual Channel 8800+ MT/s (OC), Max 256GB
Graphics Output 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features 3x M.2 Slot, 1x 2.5Gbps LAN, Intel Wi-Fi 7, Bluetooth 5.4
