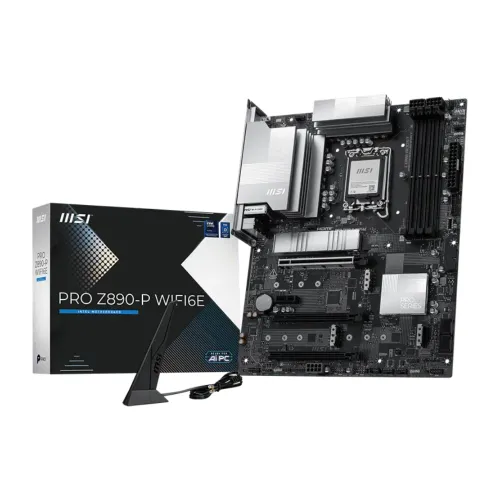

MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard

Status
In Stock
3 stores
Lowest 34,500 BDT
Price Range 34,500 to 35,000 BDT Save 1%
MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard

Product Description

Unlock Unparalleled Performance with the MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard

Designed for enthusiasts and professionals, the MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard is engineered to deliver exceptional performance, flexibility, and features for the latest Intel Core Ultra Series 2 processors. With its robust design and cutting-edge technology, this motherboard is the perfect choice for building a high-performance PC that meets your demands.

Key Features and Benefits
  • Supports four DDR5 UDIMM slots with a maximum capacity of 256GB and overclocking speeds up to 9200+ MT/s
  • Four M.2 slots support PCIe 5.0 and PCIe 4.0 NVMe drives, with the fourth slot also supporting SATA mode for added flexibility
  • Comprehensive RAID support for both SATA and M.2 NVMe storage devices, including RAID 0, 1, 5, and 10
  • Realtek ALC897 7.1-channel high-definition audio for immersive sound during gaming and media playback
  • Extensive USB connectivity, including USB 10Gbps Type-A, USB 10Gbps Type-C, and USB 20Gbps Type-C ports
Proprietary Technologies and Performance Enhancements

The MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard features a range of proprietary technologies and performance enhancements, including:

Wi-Fi 6E technology for fast and reliable wireless connectivity, supporting 2.4GHz, 5GHz, and 6GHz bands up to 2.4Gbps

Bluetooth 5.3 for seamless connectivity with wireless peripherals and devices

4x EZ Debug LEDs for simplified troubleshooting during system builds and upgrades

TPM 2.0 header for hardware-level security support for Windows 11 systems

Part ID: #CAN-01206 Last Updated: 2 weeks ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard
In Stock 34,500 1 week ago
Buy Now
Creatus Computer MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard
In Stock 35,000 4 hours ago
Buy Now
Skyland BD MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard
In Stock 35,000 3 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Core Ultra Processors (Series 2)
Chipset INTEL Z890
BIOS Flash BIOS Button
Form Factor ATX 243.84mmx304.8mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory 256GB

Graphics

Graphics 1x HDMI 2.1 1x DisplayPort 1.4

Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN Port (s) Realtek 8126 5Gbps LAN
Wireless Communication module Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features LED FEATURE: 4x EZ Debug LED

Warranty Information

Manufacturing Warranty 3 Years Warranty

Key Features

Model PRO Z890-P WIFI6E
Supported CPU Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM 4x DDR5 UDIMM, Up to 9200 (OC) MT/s, Max 256GB
Graphics Output 1x HDMI 2.1, 1x DisplayPort 1.4
Features 4x M.2, Realtek 8126 5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3
Part ID: #CAN-01206 Last Updated: 2 weeks ago
