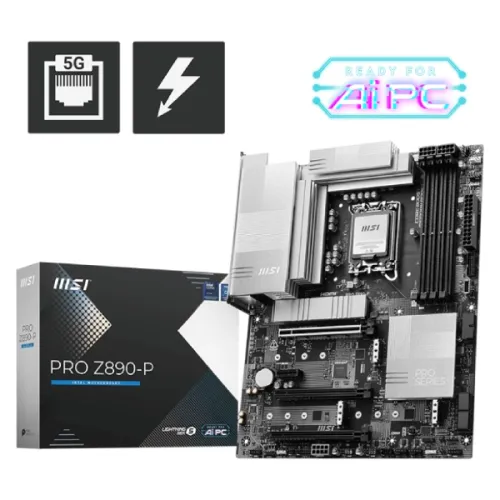

MSI PRO Z890-P LGA 1851 ATX Motherboard

Status
In Stock
4 stores
Lowest 34,300 BDT
Price Range 34,300 to 36,500 BDT Save 6%
MSI PRO Z890-P LGA 1851 ATX Motherboard

Product Description

Unleash Unparalleled Performance with the MSI PRO Z890-P LGA 1851 ATX Motherboard

This motherboard is designed for professionals and gamers alike, offering cutting-edge features and performance capabilities that take your computing experience to new heights. With its robust design and advanced technologies, the MSI PRO Z890-P LGA 1851 ATX motherboard is the perfect choice for those who demand the best.

Key Features and Benefits

Powerful Performance

  • Supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket
  • Up to 9200+ MT/s (OC) DDR5 memory support with a maximum capacity of 256GB
  • PCIe 5.0 slots and support for Lightning Gen 5 x4 M.2
  • Thunderbolt 4 connector with up to 40Gbps transfer speeds and compatibility for 8K displays
  • 5Gbps LAN and Intel Wi-Fi 7 for fast and reliable networking

Advanced Technologies and Features

Enhanced Cooling and Power Delivery

The MSI PRO Z890-P LGA 1851 ATX motherboard features a powerful 14+1+1+1 Duet Rail Power System with 55A DrMOS, dual 8-pin CPU power connectors, and a 6-layer PCB composed of 2oz thicker copper, ensuring consistent power delivery and greater dependability for demanding workloads. The enlarged heatsink, MOSFET thermal pads rated for 7W/mK, and EZ M.2 Shield Frozr II offer improved thermal performance.

Part ID: #CAN-01117 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
TechLand BD MSI PRO Z890-P LGA 1851 DDR5 ATX Motherboard
In Stock 34,300 4 hours ago
Buy Now
Star Tech MSI PRO Z890-P LGA 1851 ATX Motherboard
In Stock 34,900 1 week ago
Buy Now
Skyland BD MSI PRO Z890-P LGA 1851 ATX Motherboard
In Stock 35,300 3 hours ago
Buy Now
Nexus Computer MSI PRO Z890-P LGA 1851 ATX Motherboard
In Stock 36,500 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2)
Chipset INTEL Z890
Form Factor ATX (243.84mmx304.8mm)
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory 256GB

Graphics

Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz*
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN Port (s) Realtek 8126 5Gbps LAN
Supported Storage 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports

Others

Special Features 4x EZ Debug LED

Warranty Information

Manufacturing Warranty 3 Year warranty

Key Features

Model PRO Z890-P
Supported CPU Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM 4x DDR5, Dual Channel 9200+ MT/s (OC), Max 256GB
Graphics Output 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features 4x M.2 Slot, 1x Realtek 8126 5Gbps LAN
Part ID: #CAN-01117 Last Updated: 1 month ago
