Product Description

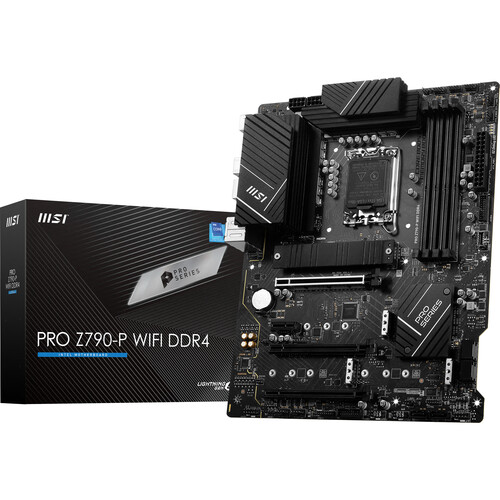

Upgrade Your System with the MSI PRO Z790-P WIFI DDR4 ATX Motherboard
Designed for gamers, content creators, and PC enthusiasts, the MSI PRO Z790-P WIFI DDR4 ATX Motherboard delivers exceptional performance and connectivity for your 14th Gen Intel Core processor-based system. With its robust feature set and reliable build quality, this motherboard is the perfect choice for those seeking to upgrade their system without breaking the bank.
Key Features and Benefits
- Supports 14th/13th/12th Gen Intel Core processors, Pentium Gold, and Celeron Processors LGA 1700
- Four DDR4 RAM slots with dual-channel memory and overclocking speed up to 5333 MHz
- Six SATA III and four M.2 connections for storage and RAID configurations
- PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots for graphics and other expansion cards
- 2.5 GbE Intel LAN and Wi-Fi 6E for fast networking and wireless connectivity
Advanced Technologies and Features
The MSI PRO Z790-P WIFI DDR4 ATX Motherboard boasts an array of advanced technologies and features, including:
Motherboard Features
- Realtek ALC897 audio codec for 7.1 channel surround sound and rear analog output connectors
- USB 3.2 Gen 2x2 Type-C connector, two USB 3.2 Gen 1 ports, and four USB 2.0 Type-A connections
- DisplayPort and HDMI for video output
- Internal headers for front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connections, chassis intrusion, a TPM module, and other features
Part ID: #CAN-01357
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
MSI PRO Z790-P WIFI DDR4 LGA 1700 ATX MOTHERBOARD
|
In Stock | 28,899 | 5 hours ago | |
|
Star Tech
MSI PRO Z790-P WIFI DDR4 ATX Motherboard
|
In Stock | 28,900 | 1 week ago | |
|
Binary Logic
MSI PRO Z790-P WIFI DDR4 ATX Motherboard
|
In Stock | 32,500 | 5 hours ago | |
|
Nexus Computer
MSI Pro Z790-P WiFi DDR4 13th & 12th Gen ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
PC House
MSI PRO Z790-P WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard
|
Check Stock | 32,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors LGA 1700
Chipset
INTEL Z790
Form Factor
ATX Form Factor 243.84mmx304.8mm
Audio
Realtek ALC897 Codec 7.1-Channel High-Definition Audio
Expansion Slots
PCI
3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket
4x M.2 slot
Memory
Type
DDR4
Supported Memory
4x DDR4, Maximum Memory Capacity 128GB Max. overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory
128GB
Graphics
Graphics
1x HDMI 1x DisplayPort Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)
Intel 2.5Gbps LAN
Wireless Communication module
Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage
4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G port
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRO Z790-P WIFI DDR4
Part ID: #CAN-01357
Last Updated: 1 month ago
