Product Description

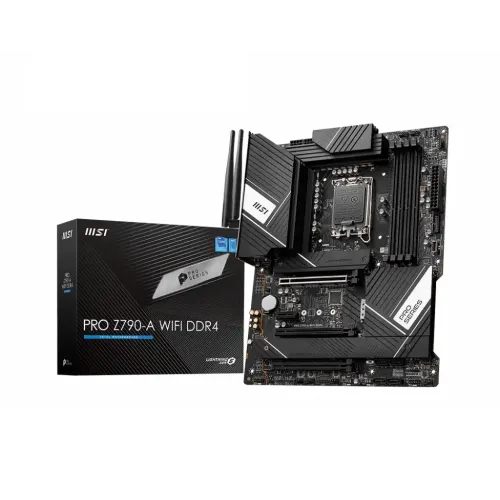

Engineered by MSI, this motherboard is designed for **LGA1700** socket processors, built on the **Z790** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. This item is currently out of stock or unavailable at our tracked local computer stores in Bangladesh.
Part ID: #CAN-01343
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI PRO Z790-A WIFI DDR4 ATX Motherboard
|
In Stock | Call for Price | 2 hours ago | |
|
Skyland BD
MSI PRO Z790-A WIFI DDR4 ATX Motherboard
|
In Stock | Call for Price | 2 hours ago | |
|
Creatus Computer
MSI PRO Z790-A WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard
|
In Stock | 28,199 | 2 hours ago | |
|
PC House
MSI PRO Z790-A WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard
|
In Stock | 28,200 | 2 hours ago | |
|
Computer Village
MSI PRO Z790-A WIFI DDR4 ATX Motherboard
|
In Stock | 28,250 | 2 hours ago | |
|
Nexus Computer
MSI Pro Z790-A WiFi DDR4 13th & 12th Gen ATX Motherboard
|
In Stock | 28,500 | 2 hours ago | |
|
Ultra Technology
MSI PRO Z790-A WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard
|
Check Stock | Call for Price | 2 hours ago | |
|
TechLand BD
MSI PRO Z790-A WIFI DDR4 Intel 14th Gen ATX Motherboard
|
Check Stock | 28,200 | 2 hours ago | |
|
UCC
MSI PRO Z790-A WIFI DDR4 13th Gen ATX Motherboard
|
Check Stock | 28,900 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset
INTEL Z790
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
Expansion Slots
PCI
3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 (By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory
128GB
Graphics
Graphics
1x HDMI 1x DisplayPort Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)
Intel 2.5Gbps LAN
Wireless Communication module
Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage
4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G port
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio
Audio Connectors
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRO Z790-A WIFI DDR4
Supported CPU
14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
Supported RAM
4x DDR4, 5333+MHz (OC), Max 128GB
Graphics Output
1x HDMI, 1x DisplayPort
Features
2.5G LAN with Wi-Fi 6E Solution
Part ID: #CAN-01343
Last Updated: 2 days ago
The MSI PRO Z790-A WIFI DDR4 ATX Motherboard supports LGA 1700 CPUs from the 12th/13th generation Intel Core, Pentium Gold, and Celeron families. This ATX motherboard, which uses the Intel Z790 chipset and the LGA 1700 socket, has four DDR4 RAM slots that allow twin-channel memory and speeds up to 5333 MHz when overclocked. Six SATA III connections and four M.2 interfaces give abundant storage space and enable RAID 0, 1, 5, and 10 through SATA or 0, 1, and 5 via M.2. GPUs and other adaptor cards may be installed through PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots. Benefit from speedy networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; quickly connect to wireless peripherals with Bluetooth 5.2. The Realtek ALC4080 audio codec offers 7.1 channel surround sound, and the rear ports can be used for analog or digital output. Connect connected peripherals through two USB 2.0, two USB 3.2 Gen 1, and three USB 3.2 Gen 2x2 Type-A ports, or a USB 3.2 Gen 2x2 Type-C port. DisplayPort and HDMI are used to output video. A Flash BIOS button is also located on the rear I/O panel, and internal headers support front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connections, chassis intrusion, a TPM module, and other features. The MSI PRO Z790-A WIFI DDR4 13th Gen ATX Motherboard comes with a 03-year warranty.
