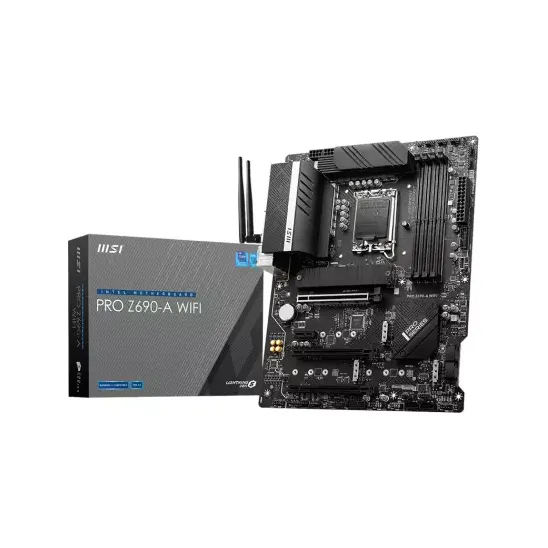

MSI PRO Z690-A WIFI DDR5 LGA 1700 12th Gen Intel ATX Motherboard

Product Description

Unlock Unmatched Performance with the MSI PRO Z690-A WIFI DDR5 Motherboard

The MSI PRO Z690-A WIFI DDR5 motherboard is specifically designed for professionals and enthusiasts seeking to build a high-performance gaming PC or business station. With its cutting-edge features and robust design, this motherboard streamlines your computing experience, delivering unparalleled speed, efficiency, and reliability.

Key Features and Benefits

The MSI PRO Z690-A WIFI DDR5 motherboard boasts an impressive array of features, including:

  • 12th Gen Intel Core Support: Compatible with Intel 12th Gen Core, Pentium Gold, and Celeron processors for LGA 1700 socket
  • DDR5 Memory Support: Up to 128GB of dual-channel RAM with speeds up to 6400 MHz supported via overclocking
  • Lightning Fast Connectivity: PCIe 5.0 slots, Lightning Gen4 x4 M.2, and USB 3.2 Gen 2×2 for seamless data transfer
  • 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use, delivering a secure, stable, and fast network connection
  • Advanced Thermal Solution: Extended heatsink design, MOSFET thermal pads, and M.2 Shield Frozr for optimal cooling and performance
Proprietary Technologies

The MSI PRO Z690-A WIFI DDR5 motherboard incorporates several innovative technologies, including:

Audio Boost: Reward your ears with studio-grade sound quality

Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

Multi-GPU Support: With Steel armor PCI-E slots, supports AMD Crossfire for multi-GPU setups

This premium motherboard is built with a 6-layer PCB made of 2oz thickened copper and server-grade level material, ensuring exceptional durability and performance. Experience the ultimate computing experience with the MSI PRO Z690-A WIFI DDR5 motherboard.

Part ID: #CAN-01673 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
PC House MSI PRO Z690-A WIFI DDR5 LGA 1700 12th Gen Intel ATX Motherboard
Check Stock 29,650 5 hours ago
Buy Now
TechLand BD MSI PRO Z690-A WIFI DDR5 LGA 1700 12th Gen Intel ATX Motherboard
Check Stock 29,700 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

LAN 1x Intel I225-V 2.5Gbps LAN controller
USB Intel Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors) 4x USB 2.0 Type-A ports on the back panel USB Hub GL850G 4x USB 2.0 ports are available through the internal USB connectors
WiFi Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.22, FIPS, FISMA
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
Slots 3x PCIe x16 slots PCI_E1 (from CPU) Supports up to PCIe 5.0 x16 PCI_E3 & PCI_E4 (from Z690 chipset) Supports up to PCIe 3.0 x4 & 3.0 x1 1x PCIe 3.0 x1 slot (from Z690 chipset)
Memory 4x DDR5 memory slots, supporting up to 128GB Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5400+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Chipset Intel Z690 Chipset
Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Warranty 3 years
Dimension 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Multi-GPU Supports AMD CrossFire Technology
Form Factor ATX Form Factor
Supported CPU Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700
Supported Storage 6x SATA 6Gb/s ports (from Z690 chipset) 4x M.2 slots (Key M) M2_1 slot (from CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from Z690 chipset) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset Support Intel® Smart Response Technology for Intel Core™ processors
Internal I/O Ports 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3)
