Product Description
Engineered by MSI, this motherboard is designed for **AM5** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **36,800 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01121
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology

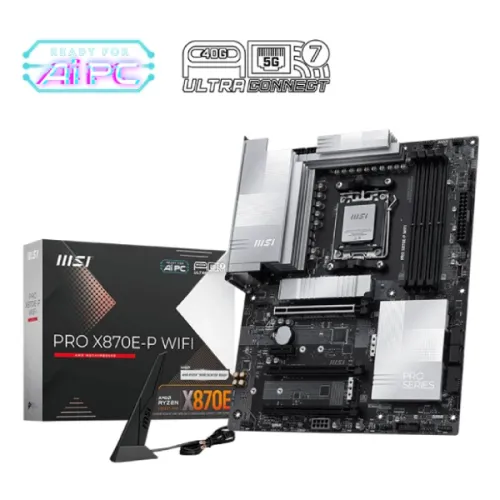

MSI PRO X870E-P WIFI AM5 ATX Motherboard
|
In Stock | 36,000 | 2 hours ago | |
|
Star Tech
MSI PRO X870E-P WIFI AM5 ATX Motherboard
|
In Stock | 36,800 | 2 hours ago | |
|
Nexus Computer
MSI PRO X870E-P WIFI AM5 ATX Motherboard
|
In Stock | 36,800 | 2 hours ago | |
|
Sell Tech
MSI PRO X870E-P WIFI AM5 ATX Motherboard
|
In Stock | 36,800 | 2 hours ago | |
|
Skyland BD
MSI PRO X870E-P WIFI AM5 ATX Motherboard
|
In Stock | 43,700 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD X870E
BIOS
Flash BIOS Button
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)
M.2 Socket
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices
Memory
Type
DDR5
Slots
4x UDIMM
Supported Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches.
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x Type-C DisplayPort
USB (s)
4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
LAN Port (s)
Realtek 8126VB 5G LAN
Wireless Communication module
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Supported Storage
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen 9000 series processors.
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
PRO X870E-P WIFI
Supported CPU
AMD Ryzen 9000/8000/7000 Series for Socket AM5
Supported RAM
4x DDR5 UDIMM, Up to 8200 (OC) Mhz
Graphics Output
1x HDMI, 1x Type-C DisplayPort
Features
3x M.2 Slot, Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01121
Last Updated: 2 days ago
The MSI PRO X870E-P WIFI AM5 ATX motherboard is a high-performance option that supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket. With four DDR5 UDIMM slots, it supports up to 256 GB of memory at rates ranging from DDR5 8200 to 4800 MT/s, as well as AMD EXPO, JEDEC, and memory overclocking capabilities. The MSI PRO X870E-P WIFI motherboard supports dual-channel operation, non-ECC unbuffered RAM, and clock driver bypass mode for advanced tweaking. Onboard graphics include HDMI 2.1 and USB4 Type-C DisplayPort 1.4 outputs, both of which offer 4K resolution at 60 Hz. The MSI AM5 motherboard has four PCIe slots, including PCI\_E1, which provides Gen 5.0 x16 capability for Ryzen 9000 and 7000 series processors. The Realtek ALC897 codec powers the audio, allowing for high-definition sound in 7.1 channels. Storage compatibility includes three M.2 slots with PCIe 5.0 and 4.0 interfaces, as well as four SATA 6G connections. The MSI PRO X870E-P WIFI motherboard has M.2\_1 operating at PCIe 5.0 x4 for Ryzen 9000 and 7000 series, and the board supports RAID 0, 1, and 10 for SATA, and RAID 0, 1, and 5 for NVMe on Ryzen 9000 CPUs. Wi-Fi 7, Bluetooth 5.4, and a Realtek 8126VB 5G LAN enable high-speed networking. USB compatibility is extensive, with USB 2.0, 5Gbps, 10Gbps, 20Gbps, and a USB4 40Gbps Type-C port. The MSI PRO X870E-P WIFI AM5 ATX motherboard also features internal headers for CPU and system fan connectors, RGB and ARGB headers, TPM 2.0, a tuning controller connector, and EZ Debug and Memory Detection LEDs. This ATX motherboard is 243.84 mm by 304.8 mm and runs Windows 11 64-bit, making it suitable for high-end gaming and workstation setups that require cutting-edge connection, performance, and future-proof features.Buy MSI PRO X870E-P WIFI AM5 ATX Motherboard from Star TechIn Bangladesh, you can get original MSI PRO X870E-P WIFI AM5 ATX Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI PRO X870E-P WIFI AM5 ATX Motherboard comes with 3 years warranty.
