Product Description

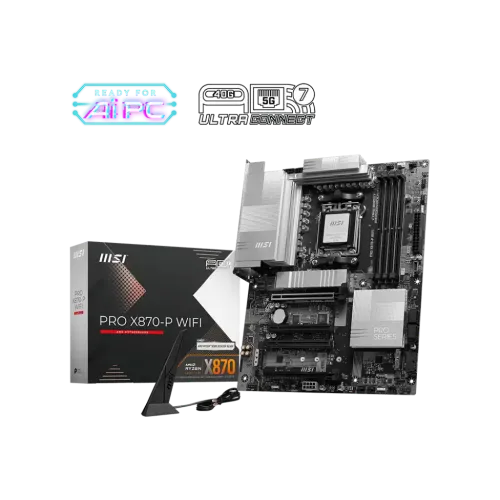

Unlock Unparalleled Performance with the MSI PRO X870-P WIFI AM5 ATX Motherboard
The MSI PRO X870-P WIFI AM5 ATX Motherboard is a powerhouse designed for enthusiasts, gamers, and professionals who demand cutting-edge performance and reliability from their computing hardware. Built to support the latest AMD Ryzen 9000, 8000, and 7000 series desktop processors, this motherboard is engineered to maximize the potential of modern CPUs, making it a future-proof choice for power users.
Key Features and Benefits
- Supports AMD Ryzen 9000, 8000, and 7000 series desktop processors
- Native support for DDR5 memory, delivering outstanding memory speeds up to 8200+ MT/s (OC)
- PCIe 5.0 slot and Lightning Gen 5 x4 M.2 technology for ultra-fast data access speeds
- Realtek 8126VB 5G LAN and Wi-Fi 7 technology for high-speed, stable, and secure networking
- Advanced connectivity options, including USB4 and 5G LAN, for high-speed data transfer
Proprietary Technologies and Performance Enhancements
The MSI PRO X870-P WIFI AM5 ATX Motherboard boasts a range of innovative features, including the 14+2+1 Duet Rail Power System for optimized power delivery, and the Core Boost and Memory Boost technologies for enhanced power management and data integrity. The motherboard also features a sophisticated Frozr Guard Cooling system, with extended heatsink design and MOSFET thermal pads rated for 7W/mK, ensuring efficient heat dissipation and preventing thermal throttling.
Part ID: #CAN-01126
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
MSI PRO X870-P WiFi AM5 ATX motherboard
|
In Stock | 35,099 | 5 hours ago | |
|
Star Tech
MSI PRO X870-P WIFI AM5 ATX Motherboard
|
In Stock | 35,500 | 1 week ago | |
|
Sell Tech
MSI PRO X870-P WIFI AM5 ATX Motherboard
|
In Stock | 35,500 | 5 hours ago | |
|
PC House
MSI PRO X870-P WIFI AM5 ATX Motherboard
|
In Stock | 35,999 | 4 hours ago | |
|
Nexus Computer
MSI PRO X870-P WIFI AM5 ATX Motherboard
|
In Stock | 36,100 | 4 hours ago | |
|
Skyland BD
MSI PRO X870-P WIFI AM5 ATX Motherboard
|
In Stock | 36,899 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD X870
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Memory
Type
DDR5
Slots
4x UDIMM
Supported Memory
Support DDR5 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x Type-C DisplayPort
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
LAN Port (s)
Realtek 8126VB 5G LAN
Wireless Communication module
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
RAID
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Internal I/O Ports
2x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
PRO X870-P WIFI
Supported CPU
Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5 8200+(OC) MHz
Graphics Output
1x HDMI, 1x Type-C Display Port
Features
Realtek 8126VB 5G LAN, Wi-Fi 7
Part ID: #CAN-01126
Last Updated: 1 month ago
