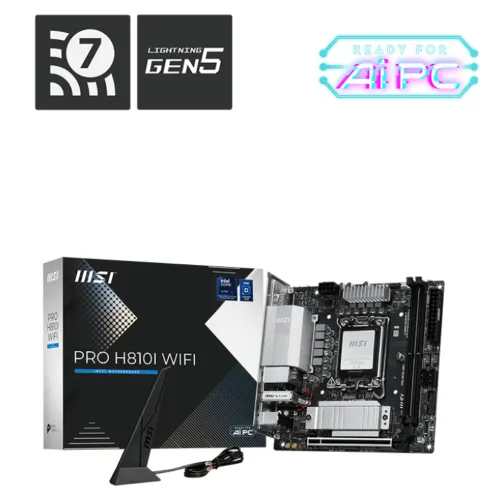

MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard

Status
In Stock
4 stores
Lowest 18,900 BDT
Price Range Single price listing
MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard

Product Description

MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard

This motherboard is designed for PC enthusiasts and professionals seeking a compact, high-performance platform for demanding applications, including gaming, productivity, and multimedia operations. With its cutting-edge Intel H810 chipset and support for Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, this motherboard offers a long-term solution for those seeking a dependable platform.

Key Features and Benefits

Technical Specifications:

  • Supports Intel Core Ultra Processors (Series 2) on the LGA 1851 socket
  • PCIe 5.0 x16 slot for expansion with the latest graphics cards
  • PCIe 4.0 x4 M.2 slot and two SATA 6Gb/s connectors for storage support
  • Intel I226 2.5Gbps LAN and Wi-Fi 7 with Bluetooth 5.4 for fast networking
  • Supports up to 128GB of DDR5 memory with speeds up to 6400 MT/s

Advanced Technologies and Performance Enhancements

Advanced Cooling and Performance Features:

The MSI PRO H810I WIFI Mini-ITX motherboard features advanced cooling technologies, including MSI's Frozr Guard, which provides efficient heat dissipation and helps maintain optimal system temperatures. Additionally, the motherboard supports Intel XMP 3.0 for seamless overclocking, allowing users to unlock the full potential of their system.

Part ID: #CAN-01030 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Ultra Technology MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard
In Stock 18,500 4 hours ago
Star Tech MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard
In Stock 18,900 1 week ago
Sell Tech MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard
In Stock 18,900 4 hours ago
Skyland BD MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard
In Stock 19,500 3 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset INTEL H810
Form Factor Mini-ITX 170mmx170mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
M.2 Socket 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices

Memory

Type DDR5
Slots 2
Supported Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s
Maximum Memory 128GB

Graphics

Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN Port (s) Intel I226 2.5Gbps LAN
Wireless Communication module Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 4x EZ Debug LED 1x EZ Memory Detection LED

Warranty Information

Manufacturing Warranty 3 Year warranty

Key Features

Model PRO H810I WIFI
Supported CPU Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM 2x DDR5 UDIMM, Up to 6400 MT/s, Max 128GB
Graphics Output 1x HDMI 2.1, 1x DisplayPort 1.4
Features 1x M.2, Intel I226 2.5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01030 Last Updated: 1 month ago
