Product Description
Engineered by MSI, this motherboard is designed for **LGA1700** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. This item is currently out of stock or unavailable at our tracked local computer stores in Bangladesh.
Part ID: #CAN-09510
Last Updated: 2 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech

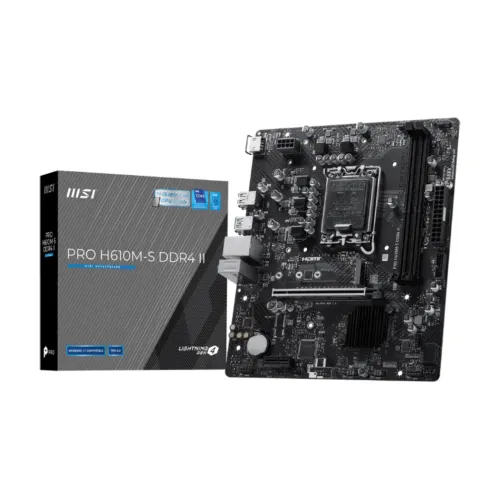

MSI PRO H610M-S DDR4 II mATX Motherboard
|
In Stock | Call for Price | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset
INTEL H610
Form Factor
mATX 200mmx236.16mm
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
Memory
Type
DDR4
Slots
2
Supported Memory
Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory
64GB
Graphics
Graphics
1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
Connector & Ports
HDMI
1x HDMI 1.4
USB (s)
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
LAN Port (s)
Realtek RTL8111H Gigabit LAN
Supported Storage
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED Support for Windows 11 64-bit, Windows 10 64-bit
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRO H610M-S DDR4 II
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR4, Max 128GB 5333(OC)
Graphics Output
2x HDMI 2.1, 2x DisplayPort 1.4
Features
1x M.2, Realtek RTL8111H Gigabit LAN
Part ID: #CAN-09510
Last Updated: 2 hours ago
The MSI PRO H610M-S DDR4 II mATX Motherboard is built for Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors on the LGA 1700 socket. This Motherboard runs on the Intel H610 chipset and supports two DDR4 memory slots with a maximum capacity of 64GB. Memory speeds reach up to 3200MHz via JEDEC standards, covering a full range from 1866MHz through 3200MHz for broad compatibility. The MSI PRO H610M-S DDR4 II Motherboard Dual-channel mode and non-ECC unbuffered memory support give the MSI mATX Motherboard dependable performance across everyday computing and productivity workloads. Core Boost technology uses a premium digital power design to support more CPU cores and deliver better sustained performance. Memory Boost technology ensures pure data signal delivery for optimal stability and memory compatibility across supported configurations. The primary PCIe 4.0 x16 slot from the CPU provides full-bandwidth support for dedicated graphics cards with Steel Armor protection against bending and EMI interference. A secondary PCIe 3.0 x1 slot from the chipset adds expansion capability for additional peripherals and components. The MSI PRO H610M-S DDR4 II mATX Motherboard includes one M.2 slot supporting PCIe 3.0 x4 and 2280, 2260, and 2242 form factor devices from the chipset. Two SATA 6G ports round out the storage options for traditional hard drives and SATA SSDs. Onboard graphics output includes one HDMI 1.4 port with HDR support delivering a maximum resolution of 4K at 30Hz. Realtek ALC897 codec powers 7.1-channel HD audio for clear, immersive sound quality during everyday use. The MSI PRO H610M-S DDR4 II mATX Motherboard has realtek RTL8111H Gigabit LAN controller provides stable and reliable wired network connectivity. Rear USB ports include four USB 2.0 and two USB 5Gbps Type-A connections for wide peripheral compatibility. Four EZ Debug LEDs simplify hardware diagnostics during system assembly and troubleshooting. The MSI Motherboard measures 200×236.16mm and fully supports Windows 10 and Windows 11 64-bit operating systems.Buy MSI PRO H610M-S DDR4 II mATX Motherboard from best Motherboard Shop in BDIn Bangladesh, you can get the original MSI PRO H610M-S DDR4 II mATX Motherboard From Star Tech. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI PRO H610M-S DDR4 II mATX Motherboard comes with 3 years warranty.
