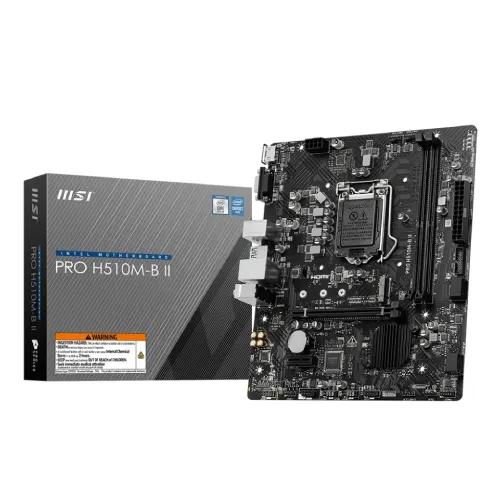

MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard

Status
In Stock
4 stores
Lowest Out of Stock
Price Range Single price listing
MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard

Product Description

Upgrade Your Build with the MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard

Designed for mid-range PC builders, the MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard offers exceptional performance and reliability for a wide range of computing applications. With its robust feature set and compatibility with 10th Gen Intel Core, Pentium Gold, and Celeron CPUs, this motherboard is the perfect choice for those seeking a high-quality build.

Key Features and Benefits:

Here are just a few of the key features and benefits of the MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard:

  • Supports 10th Gen Intel Core, Pentium Gold, and Celeron CPUs via LGA 1200 socket
  • Up to 64GB DDR4 memory at speeds up to 2933MHz for smooth and efficient performance
  • Multi-display support via HDMI (4K 30Hz) and VGA (2048x1536 50Hz)
  • Four SATA 6G ports and one M.2 slot for ample storage options
  • Realtek 8111H Gigabit LAN for reliable networking

Advanced Technologies for Enhanced Performance

The MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard incorporates several advanced technologies to deliver exceptional performance and reliability, including:

  • Realtek ALC897 Codec for 7.1-channel high-definition audio
  • Core Boost technology for improved performance
  • Audio Boost for higher sound quality
  • Steel Armor for VGA card safety
Part ID: #CAN-01225 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Skyland BD MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard
In Stock 9,000 3 hours ago
Buy Now
Nexus Computer MSI PRO H510M-B II mATX Motherboard
In Stock 9,500 3 hours ago
Buy Now
Sell Tech MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard
Check Stock Call for Price 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
Chipset INTEL H470
Form Factor mATX 202mmx236mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket 1x M.2

Memory

Type DDR4
Slots 2
Supported Memory Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory 64GB

Graphics

Graphics 1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

Connector & Ports

HDMI 1x HDMI 1.4
Display Port (s) 1x VGA
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Realtek 8111H Gigabit LAN
Supported Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 4x EZ Debug LED

Warranty Information

Manufacturing Warranty 3 years Warranty

Key Features

Model PRO H510M-B II
Supported CPU 10th Gen Intel processors for LGA 1200
Supported RAM 2x DDR4, Max 64GB up to 2933MHz
Graphics Output 1x HDMI, 1x VGA
Features 1x M.2, Realtek 8111H Gigabit LAN
Part ID: #CAN-01225 Last Updated: 1 month ago
