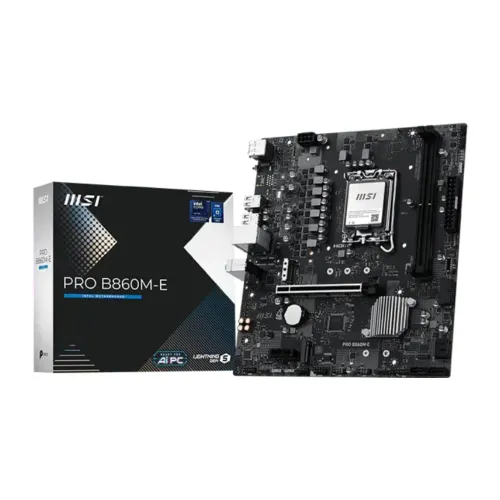

MSI PRO B860M-E LGA 1851 mATX Motherboard

Status
In Stock
3 stores
Lowest 18,900 BDT
Price Range Single price listing
MSI PRO B860M-E LGA 1851 mATX Motherboard

Product Description

MSI PRO B860M-E LGA 1851 mATX Motherboard

Unlock the full potential of your Intel Core Ultra Processor with the MSI PRO B860M-E LGA 1851 mATX Motherboard, designed for enthusiasts and professionals seeking exceptional performance, versatility, and reliability. This motherboard is perfect for building a compact yet powerful gaming PC, workstation, or multimedia system.

Key Features and Benefits

  • Dual-channel DDR5 memory support with up to 128GB capacity and speeds of 9066 MT/s (OC) and 6400 MT/s (JEDEC)
  • Intel XMP 3.0 and memory overclocking support for seamless performance tuning
  • Two M.2 slots with PCIe 5.0 x4 and PCIe 4.0 x4 SSD storage options, plus four SATA 6G ports for flexible storage solutions
  • Realtek 8126 5Gbps LAN and USB 10Gbps Type-C for fast connectivity and data transfer
  • Realtek ALC897 7.1-channel high-definition audio for immersive sound quality and reliable audio clarity

Advanced Technologies and Features

MSI DDR5 Motherboard Technology

The MSI PRO B860M-E Motherboard features advanced DDR5 memory technology, supporting DDR5 overclocking speeds from 9066 MT/s to 6400 MT/s and JEDEC speeds from 6400 MT/s to 4800 MT/s. This technology enables seamless performance tuning and provides a robust foundation for demanding workloads.

Design and Compatibility

The MSI PRO B860M-E LGA 1851 mATX Motherboard boasts a compact 220mm x 243.84mm design, making it an ideal choice for compact PC builds. With its advanced features and compatibility with Intel Core Ultra Processors, this motherboard is perfect for a wide range of applications, from gaming and multimedia to professional workstations and data centers.

Part ID: #CAN-01208 Last Updated: 3 weeks ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI PRO B860M-E LGA 1851 mATX Motherboard
In Stock 18,900 1 week ago
Buy Now
Creatus Computer MSI PRO B860M-E LGA 1851 mATX Motherboard
In Stock 18,900 4 hours ago
Buy Now
Skyland BD MSI PRO B860M-E LGA 1851 mATX Motherboard
In Stock 18,900 3 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Core Ultra Processors (Series 2)
Chipset INTEL B860
Form Factor mATX 220mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

Memory

Type DDR5
Slots 2x UDIMM
Supported Memory Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9066+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory 128GB

Graphics

Graphics 1x HDMI 2.1 1x DisplayPort 1.4

Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front)
LAN Port (s) Realtek 8126 5Gbps LAN
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features LED FEATURE: 4x EZ Debug LED, 1x EZ Memory Detection LED

Warranty Information

Manufacturing Warranty 3 Years Warranty

Key Features

Model PRO B860M-E
Supported CPU Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM 2x DDR5 UDIMM, Up to 9066 (OC) MT/s, Max 128GB
Graphics Output 1x HDMI 2.1, 1x DisplayPort 1.4
Features 2x M.2, Realtek 8126 5Gbps LAN, 7.1-Channel Audio
