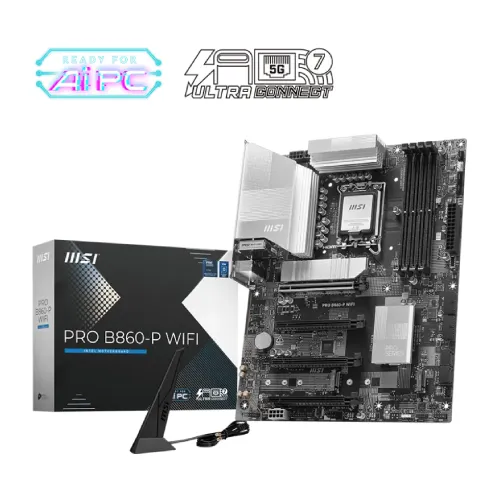

MSI PRO B860-P WIFI LGA 1851 ATX Motherboard

Status
In Stock
4 stores
Lowest 27,800 BDT
Price Range Single price listing
MSI PRO B860-P WIFI LGA 1851 ATX Motherboard

Product Description

Upgrade to Unmatched Performance

Designed for gamers, creators, and professionals, the MSI PRO B860-P WIFI LGA 1851 ATX Motherboard delivers exceptional performance and durability. With its cutting-edge Intel B860 chipset and support for the latest Intel Core Ultra Series 2 CPUs, this motherboard is built to handle demanding workloads and provide a seamless computing experience.

Key Features and Benefits

  • Supports Intel Core Ultra Processors (Series 2) for exceptional performance
  • 4x DDR5 slots with a maximum capacity of 256GB and overclocked rates of up to 8800+ MT/s
  • Thunderbolt 4, PCIe 5.0, and 5 GbE LAN for rapid data transfer and low latency
  • Realtek 8126 5Gbps LAN and Wi-Fi 7 for seamless connectivity
  • 3x M.2 slots for expanded storage options and improved performance
  • Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA and M.2 NVMe storage devices

Advanced Technologies and Innovations

The MSI PRO B860-P WIFI LGA 1851 ATX Motherboard features a range of innovative technologies, including a 12+1+1+1 digital power system, M.2 Shield Frozr II, and expanded heatsinks to maintain optimal thermal performance during heavy workloads.

Part ID: #CAN-01085 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Ultra Technology MSI PRO B860-P WIFI LGA 1851 ATX Motherboard
In Stock 27,500 4 hours ago
Buy Now
Skyland BD MSI PRO B860-P WIFI LGA 1851 ATX Motherboard
In Stock 27,600 3 hours ago
Buy Now
Star Tech MSI PRO B860-P WIFI LGA 1851 ATX Motherboard
In Stock 27,800 1 week ago
Buy Now
Nexus Computer MSI PRO B860-P WIFI LGA 1851 Gaming Motherboard
In Stock 27,900 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2)
Chipset INTEL B860
Form Factor ATX (243.84mmx304.8mm)
Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
M.2 Socket 3x M.2

Memory

Type DDR5
Slots 4
Supported Memory 4x DDR5 UDIMM, Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s
Maximum Memory Maximum Memory Capacity 256GB

Graphics

Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz*
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s) Realtek 8126 5Gbps LAN
Wireless Communication module Intel Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Warranty Information

Manufacturing Warranty 3 Year warranty

Key Features

Model B860-P WIFI
Supported CPU Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM 4x DDR5, Max 256GB 8800- 6400 (OC) MT/s
Graphics Output 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features 3x M.2, Realtek 8126 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
