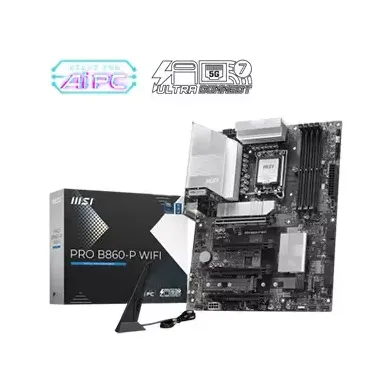

MSI PRO B860-P WIFI DDR5 ATX Intel Motherboard

Status
In Stock
2 stores
Lowest 26,700 BDT
Price Range 26,700 to 27,699 BDT Save 4%
MSI PRO B860-P WIFI DDR5 ATX Intel Motherboard

Product Description

Unlock Unparalleled Performance with the MSI PRO B860-P WIFI DDR5 ATX Motherboard

The MSI PRO B860-P WIFI DDR5 ATX Motherboard is designed for enthusiasts who demand top-tier performance for gaming, content creation, and multitasking. Built with the powerful Intel B860 chipset, this motherboard supports the latest Intel Core Ultra processors, delivering outstanding performance and future-proof capabilities.

Key Features and Performance Highlights

  • Supports Intel Core Ultra processors with the Intel B860 chipset for outstanding performance
  • DDR5 memory support with speeds up to 8800 MT/s and a maximum capacity of 256GB
  • Three M.2 slots, including one PCIe 5.0 slot, for lightning-fast storage solutions
  • Exceptional graphics output with HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4 compatibility
  • Advanced networking features include Intel Wi-Fi 7 and Realtek 5Gbps LAN for stable and high-speed connectivity

Advanced Technologies and Features

The MSI PRO B860-P WIFI DDR5 ATX Motherboard boasts numerous advanced technologies and features, including:

Enhanced Audio Quality

Powered by the Realtek ALC897 codec, this motherboard delivers crystal-clear 7.1-channel sound for an immersive experience.

Practicality and Customization

With features like EZ Debug LEDs for troubleshooting, Addressable RGB headers for custom lighting, and extensive cooling support, this motherboard is designed with practicality and customization in mind.

Part ID: #CAN-01487 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
TechLand BD MSI PRO B860-P WIFI DDR5 ATX Intel Motherboard
In Stock 23,499 4 hours ago
Buy Now
Creatus Computer MSI PRO B860-P WIFI DDR5 ATX Motherboard
In Stock 27,699 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

LAN Realtek® 8126 5Gbps LAN
USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Brand MSI
Model PRO B860-P WIFI
Memory Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Chipset INTEL B860
Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Graphics 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Warranty 3 years
Wireless Intel Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Bluetooth Supports Bluetooth 5.4**, MLO, 4KQAM
CPU Socket Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Form Factor ATX 243.84mmx304.8mm
Memory Slot 4
Memory Type DDR5
Expansion Slots 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
Bundled Software Support for Windows 11 64-bit
Max Memory Speed 256GB
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
