Product Description

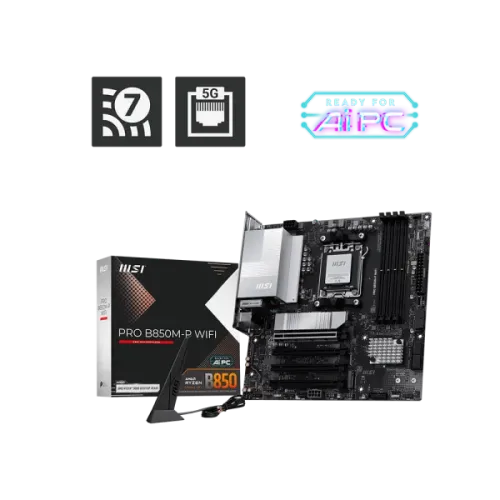

Unleash Uncompromising Performance with the MSI PRO B850M-P WIFI AM5 mATX Motherboard
The MSI PRO B850M-P WIFI is designed for users who demand uncompromising performance, future-ready connectivity, and efficient thermal management in a compact form factor. Whether you're a gamer, content creator, or enthusiast, this motherboard provides the perfect foundation for building a powerful and future-proof system.
Key Features and Benefits
Key Technical Specifications:
- Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket
- Up to 8200+ MT/s (OC) DDR5 memory speed for ultra-fast responsiveness
- Integrated Wi-Fi 7 and Realtek 8126VB 5G LAN for ultra-fast, low-latency networking
- Supports PCIe 5.0 graphics and Gen 5 x4 M.2 SSDs for lightning-fast data transfer
- Three M.2 slots and four SATA 6G ports for flexible storage options
Advanced Technologies and Features
MSI's Cutting-Edge Technologies:
The MSI PRO B850M-P WIFI features MSI's Frozr Guard thermal architecture, including extended heatsinks and high-performance MOSFET pads, to maintain optimal temperatures during heavy loads. Additionally, the EZ M.2 Shield Frozr II and tool-less installation clips simplify DIY builds, while the chipset heatsink minimizes dust and noise for long-term reliability.
Connectivity and Expandability
The rear I/O panel is packed with high-speed USB 10Gbps Type-A and Type-C ports, HDMI 2.1 and DisplayPort 1.4 for 4K 60Hz output, and dedicated buttons for Flash BIOS and Clear CMOS. Internal headers support RGB and ARGB lighting, multiple fan configurations, TPM 2.0, and front panel USB connectivity, making it ideal for custom builds and future upgrades.
Part ID: #CAN-01320
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI PRO B850M-P WIFI AM5 mATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
TechLand BD
MSI PRO B850M-P AM5 mATX Motherboard
|
In Stock | 21,200 | 4 hours ago | |
|
Creatus Computer
MSI PRO B850M-P WIFI ATX AMD Motherboard
|
In Stock | 22,999 | 4 hours ago | |
|
Nexus Computer
MSI PRO B850M-P WIFI AM5 mATX Motherboard
|
In Stock | 23,100 | 3 hours ago | |
|
PCB Store
MSI PRO B850M-P WIFI AM5 mATX Motherboard
|
Check Stock | 23,200 | 4 hours ago | |
|
Sell Tech
MSI PRO B850M-P WIFI AM5 mATX Motherboard
|
Check Stock | 23,200 | 4 hours ago | |
|
Skyland BD
MSI PRO B850M-P WIFI AM5 mATX Motherboard
|
Check Stock | 23,500 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B850
BIOS
Flash BIOS Button
Form Factor
mATX 243.84mmx243.84mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
Memory
Type
DDR5
Slots
4x UDIMM
Supported Memory
Memory Support 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. The DIMM slots on this motherboard only have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports
HDMI
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz
Display Port (s)
1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s)
Realtek 8126VB 5G LAN
Wireless Communication module
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Supported Storage
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Memory Detection LED
Bundled Software
Support for Windows 11 64-bit
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
PRO B850M-P WIFI
Supported CPU
AMD Ryzen 9000/8000/7000 Series for Socket AM5
Supported RAM
4x DDR5 UDIMM, Up to 8200 (OC) Mhz
Graphics Output
1x HDMI, 1x DisplayPort
Features
3x M.2 Slot, Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01320
Last Updated: 1 month ago
