Product Description

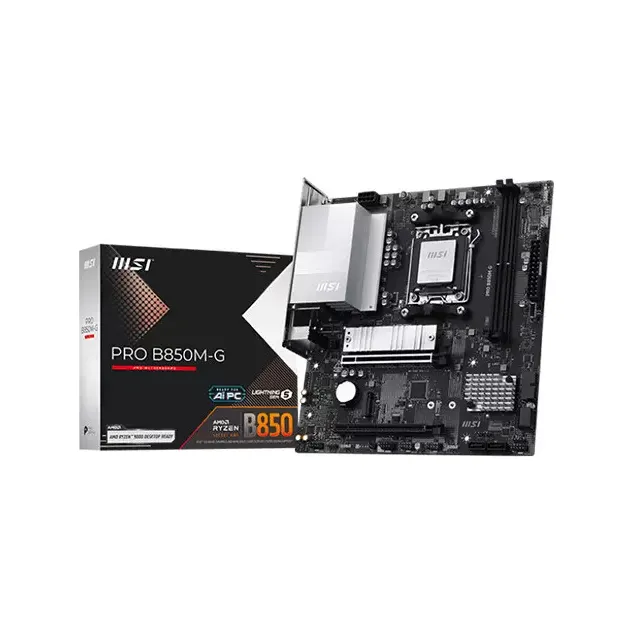

Engineered by MSI, this motherboard is designed for **AM5** socket processors and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **17,900 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-01441
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
OS
Support for Windows 11 64-bit
LAN
Realtek 8126VB 5G LAN
USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)3x USB 5Gbps Type A (Rear)1x USB 5Gbps Type C (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type C (Front)
Raid
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio
Realtek ALC8977.1-Channel High Definition Audio
Slots
2x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Memory
2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen 9000 Series Processors max. Overclocking frequency:• 1DPC 1R Max speed up to 8200+ MT/s• 1DPC 2R Max speed up to 8000+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only*
Chipset
AMD B850
Graphics
1x HDMISupport HDMITM 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*
Warranty
3 Years
Form Factor
mATX226mmx243.84mm
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Other Features
LED FEATURE4x EZ Debug LED1x EZ Memory Detection LED
Supported Storage
2x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6GM2_1 slot• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)M2_2 slot• Supports up to PCIe 4.0 x4• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
External I/O Ports
DisplayPortHDMIUSB 5Gbps Type-AClear CMOS ButtonUSB 2.05G LANAudio connectorsUSB 5Gbps Type-CFlash BIOS ButtonUSB 5Gbps Type-A
Internal I/O Ports
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x Combo Fan (Pump_Sys Fan)2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
Part ID: #CAN-01441
Last Updated: 2 days ago
