Product Description
Engineered by MSI, this motherboard is designed for **AM5** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. This item is currently out of stock or unavailable at our tracked local computer stores in Bangladesh.
Part ID: #CAN-01209
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech

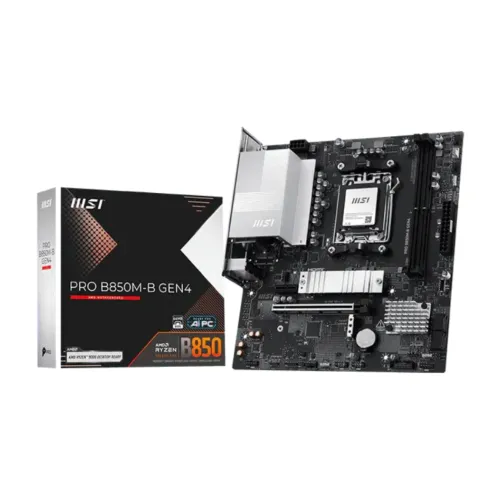

MSI PRO B850M-B GEN4 AM5 mATX Motherboard
|
In Stock | Call for Price | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B850
BIOS
Flash BIOS Button
Form Factor
mATX 226mmx243.84mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
Memory
Type
DDR5
Slots
2x UDIMM
Supported Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory
128GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4
USB (s)
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front)
LAN Port (s)
Realtek 8125 2.5G LAN
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
LED FEATURE: 4x EZ Debug LED, 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty
3 Years Warranty
Key Features
Model
PRO B850M-B GEN4
Supported CPU
AMD Ryzen 9000/ 8000/ 7000 Series, Socket AM5
Supported RAM
2x DDR5 UDIMM, Up to 8200 (OC) MT/s, Max 128GB
Graphics Output
1x HDMI 2.1, 1x DisplayPort 1.4
Features
2x M.2, Realtek 8125 2.5G LAN, 7.1-Channel Audio
Part ID: #CAN-01209
Last Updated: 2 days ago
The MSI PRO B850M-B GEN4 AM5 mATX Motherboard comes with advanced AMD B850 chipset. This Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors through the latest AM5 socket platform architecture. This MSI PRO B850M-B GEN4 mATX Motherboard supports dual-channel DDR5 memory with two UDIMM slots and maximum memory capacity support up to 128GB. MSI DDR5 Motherboard technology supports memory speeds from DDR5 8200 MT/s to 5600 MT/s overclocked and 5600 MT/s to 4800 MT/s JEDEC speeds. MSI PRO B850M-B GEN4 Motherboard supports AMD EXPO memory overclocking, AMD POR speed, non-ECC unbuffered memory, dual-channel mode, and CUDIMM compatibility. Ryzen 9000 Series processors support maximum memory overclocking frequencies up to 8200+ MT/s for 1DPC 1R and 8000+ MT/s for 1DPC 2R. MSI AM5 Motherboard graphics connectivity includes HDMI 2.1 and DisplayPort 1.4 outputs supporting smooth 4K 60Hz display performance for entertainment and professional workloads. The motherboard provides one PCIe 4.0 x16 slot from the CPU and one PCIe 3.0 x1 slot from the chipset for expansion flexibility. MSI PRO B850M-B GEN4 AM5 Micro ATX Motherboard includes two M.2 slots supporting PCIe 5.0 x4 and PCIe 4.0 x4 SSD storage performance. The motherboard also offers four SATA 6G ports with RAID 0, RAID 1, and RAID 10 support for flexible storage management. MSI Motherboard connectivity includes Realtek 8125 2.5G LAN, USB 10Gbps Type-C, USB 5Gbps Type-A ports, and multiple front USB connections. Realtek ALC897 7.1-channel high-definition audio delivers clear and immersive sound quality for gaming, entertainment, streaming, and professional productivity tasks. MSI PRO B850M-B GEN4 Motherboard also features RGB connectors, TPM 2.0 support, EZ Debug LEDs, efficient cooling headers, and Windows 11 compatibility within a durable 226mm x 243.84mm mATX design.Buy MSI PRO B850M-B GEN4 AM5 mATX Motherboard from Star TechIn Bangladesh, you can get original MSI PRO B850M-B GEN4 AM5 mATX Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price.The MSI PRO B850M-B GEN4 AM5 mATX Motherboard has 3 year warranty.
