Status
In Stock
6 stores
Lowest Deal
29,299 BDT
Best Deal
Price Range
29,299 to 30,000 BDT
Save 2%
Product Description

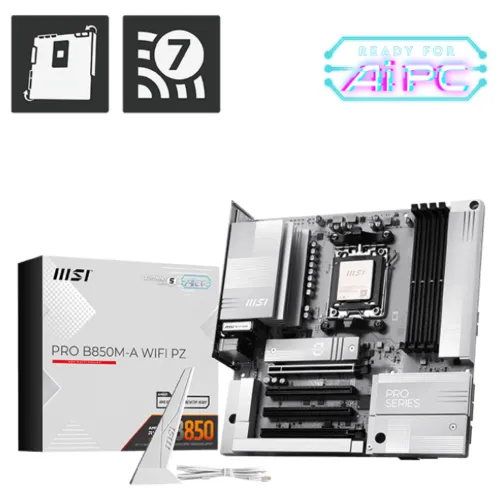

Unlock Unparalleled Performance with the MSI PRO B850M-A WIFI PZ
The MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard is specifically designed for modern PC builders and gaming enthusiasts seeking exceptional reliability, speed, and performance. Built with cutting-edge technology and premium materials, this motherboard delivers outstanding power efficiency, overclocking potential, and future-ready connectivity.
Technical Highlights
- Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors for exceptional power efficiency and overclocking potential.
- Dual-channel DDR5 memory with speeds up to 8200+ MT/s (OC) for lightning-fast data processing and multitasking capabilities.
- PCIe 5.0 support and Lightning Gen 5 x4 M.2 slots for ultra-fast storage and expansion options.
- Realtek 8126 5G LAN and the latest Wi-Fi 7 technology for secure, high-speed networking.
- Windows 11 compatible and designed with military-grade components for durability and innovation.
Advanced Features and Technologies
The MSI PRO B850M-A WIFI PZ Motherboard boasts a range of innovative features and technologies that enhance performance and user experience. Key highlights include:
- Frozr Guard Thermal Design: Extended heatsinks, 7W/mK MOSFET thermal pads, choke thermal pads, and an M.2 Shield Frozr for consistent cooling and thermal performance.
- Direct 8+2+1 Power System: Robust power delivery system with 60A SPS and 8+4-pin CPU connectors for efficient power distribution.
- Audio Boost Technology: Immersive studio-grade sound with improved audio quality and clarity.
Part ID: #CAN-01094
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Skyland BD
MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard
|
In Stock | 29,299 | 4 hours ago | |
|
Ultra Technology
MSI PRO B850M-A WIFI PZ mATX AM5 Motherboard
|
In Stock | 29,500 | 4 hours ago | |
|
Star Tech
MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard
|
In Stock | 30,000 | 1 week ago | |
|
TechLand BD
MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard
|
In Stock | 30,000 | 5 hours ago | |
|
Sell Tech
MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard
|
In Stock | 30,000 | 5 hours ago | |
|
UCC
MSI PRO B850M-A WIFI PZ AM5 DDR5 PCIe 5.0 ATX Motherboard
|
Check Stock | 30,500 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B850
Form Factor
mATX 243.84mmx243.84mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
Memory
Type
DDR5
Slots
4x UDIMM
Supported Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz
Display Port (s)
1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
USB (s)
4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s)
Realtek 8126 5G LAN
Wireless Communication module
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
PRO B850M-A WIFI PZ
Supported CPU
Ryzen 9000/8000/7000 Series for Socket AM5
Supported RAM
4x DDR5 UDIMM, Up to 8200 (OC) MT/s, Max 256GB
Graphics Output
1x HDMI 2.1, 1x DisplayPort 1.4, Max Resolution of 4K 60Hz
Features
2x M.2 Slot, Realtek 8126 5G LAN, Wi-Fi 7, Back-Connect (BTF) Design
Part ID: #CAN-01094
Last Updated: 1 month ago
