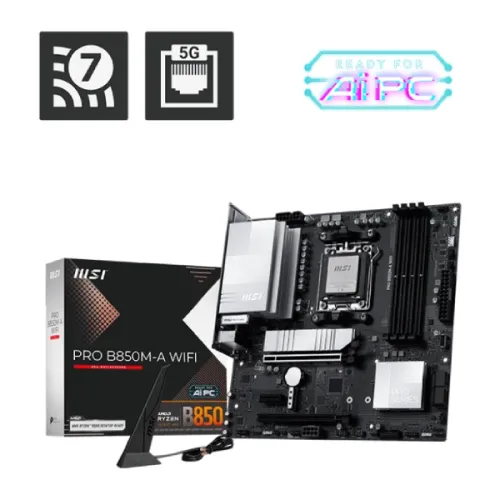

Unlock Unparalleled Performance with the MSI PRO B850M-A WIFI AM5 Motherboard
Welcome gamers, content creators, and tech enthusiasts! The MSI PRO B850M-A WIFI AM5 motherboard is designed to unleash the full potential of your AMD Ryzen 9000, 8000, and 7000 series desktop processors, delivering lightning-fast performance, robust connectivity, and future-proof features.
Key Features and Benefits
- Supports AMD Ryzen 9000, 8000, and 7000 series desktop processors for unparalleled performance and power efficiency
- 4x DDR5 UDIMM slots with speeds up to 8200+ MT/s (OC) and 256GB maximum capacity for seamless multitasking and gaming
- Realtek 8126VB 5G LAN and Wi-Fi 7 module for ultra-fast wired and wireless connectivity
- Realtek ALC897 7.1-channel high-definition audio for immersive gaming and media experiences
- 3x PCIe slots, including PCIe 5.0 x16, PCIe 4.0 x4, and PCIe 3.0 x1 for flexible upgrade paths and graphics card support
Advanced Technologies and Compatibility Highlights
The MSI PRO B850M-A WIFI motherboard is engineered to take advantage of the latest AMD technologies, including:
AMD EXPO Technology
The PRO B850M-A WIFI motherboard supports AMD EXPO (Extended Profiles for Overclocking) technology, which allows for seamless overclocking and memory tuning, ensuring optimal performance and stability.
Future-Ready Connectivity
With its built-in Wi-Fi 7 module and Realtek 8126VB 5G LAN, the PRO B850M-A WIFI motherboard is future-proofed for ultra-fast wired and wireless connectivity, making it perfect for online gaming, streaming, and content creation.
Part ID: #CAN-01078
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI PRO B850M-A WIFI AM5 mATX Motherboard
|
In Stock | 25,999 | 1 week ago | |
|
Ultra Technology
MSI PRO B850M-A WIFI AM5 mATX Motherboard
|
In Stock | 26,800 | 4 hours ago | |
|
Creatus Computer
MSI PRO B850M-A WIFI AM5 mATX Motherboard
|
In Stock | 26,999 | 4 hours ago | |
|
TechLand BD
MSI PRO B850M-A WIFI DDR5 AM5 mATX Motherboard
|
In Stock | 27,200 | 5 hours ago | |
|
Sell Tech
MSI PRO B850M-A WIFI AM5 mATX Motherboard
|
In Stock | 27,200 | 4 hours ago | |
|
Skyland BD
MSI PRO B850M-A WIFI AM5 mATX Motherboard
|
In Stock | 27,200 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B850
BIOS
Flash BIOS Button
Form Factor
mATX 243.84mmx243.84mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions.
Memory
Type
DDR5
Slots
4x UDIMM
Supported Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. The DIMM slots on this motherboard only have single-sided latches.
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports
HDMI
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz
Display Port (s)
1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
USB (s)
4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s)
Realtek 8126VB 5G LAN
Wireless Communication module
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/b/g/n/ac/ax/be Supports Bluetooth 5.4, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations, and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated; please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
PRO B850M-A WIFI
Supported CPU
AMD Ryzen 9000/8000/7000 Series for Socket AM5
Supported RAM
4x DDR5 UDIMM, Up to 8200 (OC) Mhz
Graphics Output
1x HDMI, 1x DisplayPort
Features
3x M.2 Slot, Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
