Product Description
Future-Ready Performance for AMD Enthusiasts

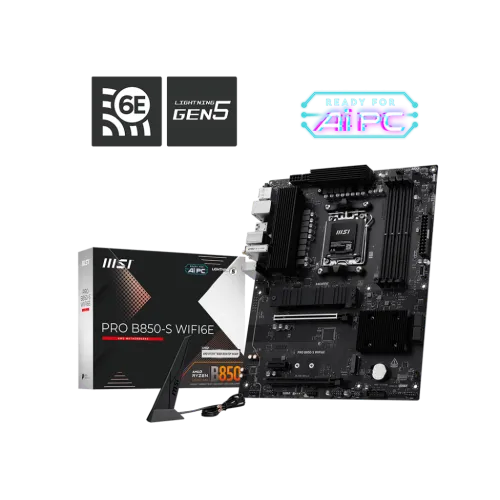

The MSI PRO B850-S WIFI6E AM5 ATX Motherboard is a powerhouse designed for professionals, gamers, and creators who demand speed, efficiency, and modern connectivity. Ideal for AMD users, this motherboard supports the latest Ryzen 9000, 8000, and 7000 Series desktop processors, ensuring seamless performance and long-term compatibility.
Key Features and Benefits
- Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors
- Up to 256GB DDR5 memory capacity with speeds from 4800 MT/s (JEDEC) to 8200+ MT/s (OC)
- 2x PCIe x16 slots with PCIe 5.0 x16 support for top-tier GPU performance
- 2x M.2 slots with PCIe 5.0 x4 and PCIe 4.0 x4 support for ultra-fast NVMe SSDs
- Realtek 8125 2.5G LAN and Wi-Fi 6E for high-speed wired and wireless networking
- Rich audio experience with Realtek ALC897 7.1-channel HD codec
MSI's Proprietary Technologies
The PRO B850-S WIFI6E motherboard boasts several innovative features that enhance performance and user experience. MSI's expertise in cooling and lighting is reflected in the motherboard's design, with multiple fan and RGB headers allowing for full control over system cooling and aesthetics. Additionally, the motherboard's ATX form factor ensures wide compatibility with most standard PC cases, making it a great choice for builders and enthusiasts.
Part ID: #CAN-01342
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
MSI PRO B850-S WIFI6E AM5 ATX Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
Ultra Technology
MSI PRO B850-S WIFI6E AM5 ATX Motherboard
|
In Stock | 26,000 | 4 hours ago | |
|
Star Tech
MSI PRO B850-S WIFI6E AM5 ATX Motherboard
|
In Stock | 26,800 | 1 week ago | |
|
TechLand BD
MSI PRO B850-S WIFI6E AM5 ATX Motherboard
|
In Stock | 26,800 | 5 hours ago | |
|
Skyland BD
MSI PRO B850-S WIFI6E AM5 ATX Motherboard
|
In Stock | 27,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Chipset
AMD B850
BIOS
Flash BIOS Button
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
Memory
Type
DDR5
Slots
4 x UDIMM
Supported Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4
USB (s)
4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s)
Realtek 8125 2.5G LAN
Wireless Communication module
Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty
3 Years Warranty
Key Features
Model
PRO B850-S WIFI6E
Supported CPU
Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 8200 (OC) MT/s
Graphics Output
1x HDMI, 1x DisplayPort
Features
Realtek 8125 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
