Status
In Stock
2 stores
Lowest Deal
25,800 BDT
Best Deal
Price Range
25,800 to 26,500 BDT
Save 3%
Product Description
Engineered by MSI, this motherboard is designed for **AM5** socket processors and featuring a **ATX** form factor, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **25,800 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-10142
Last Updated: 1 week ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Information
Slots
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G
WiFi
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
PCI-E
2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 Slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Main Features
Audio
Realtek ALC897 7.1-Channel High-Definition Audio
Chipset
AMD B850
Form Factor
ATX
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Memory Specifications
Supported Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s
Connector & ports
Display Port (s)
1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
HDMI
1x HDMI Supports HDMI 2.1 with TMDS port, maximum resolution of 4K 60Hz*
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type-C port
LAN Port (s)
Realtek 8126VB 5G LAN
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
Expansion Slots
M.2 Socket
AM5
Warranty Information
Warranty
3 Years
Part ID: #CAN-10142
Last Updated: 1 week ago

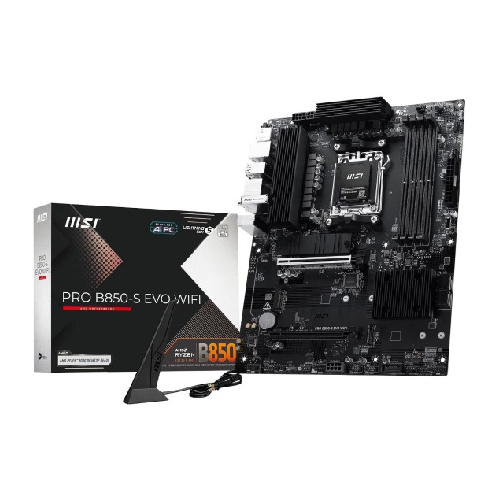

for High-Performance Ryzen Desktop BuildsThe MSI PRO B850-S EVO Wi-Fi AM5 ATX Motherboard is designed for users who want a modern, reliable platform for AMD Ryzen desktop processors. Featuring the AMD B850 chipset and AM5 socket, it supports AMD Ryzen 9000, 8000, and 7000 Series processors. The motherboard provides four DDR5 UDIMM slots with up to 256GB memory capacity and supports DDR5 speeds up to 8200+ MT/s with compatible Ryzen 9000 processors. It also includes Wi-Fi 7, Bluetooth 5.4, and Realtek 8126VB 5G LAN for fast and flexible networking. For storage, three M.2 slots and four SATA 6G connectors provide multiple options for high-speed SSDs and storage drives. The PCIe 5.0 x16 slot is suitable for modern graphics cards and expansion devices. With HDMI 2.1, DisplayPort 1.4, multiple USB ports, Realtek 7.1-channel audio, and a 3-year warranty, this ATX motherboard is a strong choice for gaming, productivity, and future-ready PC builds.Why Choose the MSI PRO B850-S EVO Wi-Fi AM5 ATX Motherboard?AMD B850 Chipset delivers a modern platform for compatible Ryzen processors.AM5 Socket supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors.Up to 256GB DDR5 Memory supports high-capacity multitasking and demanding applications.DDR5 Up to 8200+ MT/s enables high-speed memory performance with compatible configurations.Wi-Fi 7 Connectivity provides fast wireless networking with 2.4GHz, 5GHz, and 6GHz support.Bluetooth 5.4 offers convenient wireless connectivity for compatible peripherals and devices.Realtek 8126VB 5G LAN provides high-speed wired network connectivity.PCIe 5.0 x16 Slot supports modern graphics cards and high-speed expansion hardware.Three M.2 Slots provide flexible options for high-speed NVMe storage.4x SATA 6G supports additional SATA-based storage devices.Multiple USB Ports include USB 5Gbps and 10Gbps Type-A and Type-C connectivity.7.1-Channel High-Definition Audio with Realtek ALC897 delivers immersive desktop audio.3-Year Warranty provides dependable long-term product support.Build a Modern AMD Ryzen PCThe MSI PRO B850-S EVO Wi-Fi motherboard provides a strong foundation for building or upgrading an AMD Ryzen desktop. Its combination of DDR5 memory support, PCIe 5.0, multiple M.2 storage slots, Wi-Fi 7, 5G LAN, and versatile USB connectivity makes it suitable for gaming, professional workloads, content creation, and everyday productivity. The ATX form factor also provides a practical layout for full-size desktop builds.Why Buy from Ultra Technology?Ultra Technology is your trusted destination for authentic tech products at competitive prices in Bangladesh. We source genuine products from authorized distributors and reputable brands, ensuring quality, reliability, and peace of mind with every purchase. Our knowledgeable team can help you choose the right product according to your requirements and budget. We offer fast nationwide delivery, responsive customer service, and dependable after-sales support, including warranty assistance when required. Whether you need PC components, gaming accessories, networking devices, or professional equipment, Ultra Technology is committed to providing a smooth, secure, and hassle-free shopping experience.Frequently Asked Questions (FAQ)Q1: Which processors are supported by the MSI PRO B850-S EVO Wi-Fi?A: It supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series desktop processors.Q2: How much DDR5 RAM does this motherboard support?A: It has four DDR5 UDIMM slots and supports up to 256GB memory.Q3: Does the motherboard support Wi-Fi 7?A: Yes, it features Wi-Fi 7 with 2.4GHz, 5GHz, and 6GHz support, along with Bluetooth 5.4.Q4: How many M.2 slots are available?A: It has three M.2 slots, including one PCIe 5.0 x4 slot and two PCIe 4.0-based slots.Q5: Does it support PCIe 5.0?A: Yes, the primary PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen 9000 and 7000 Series processors...
