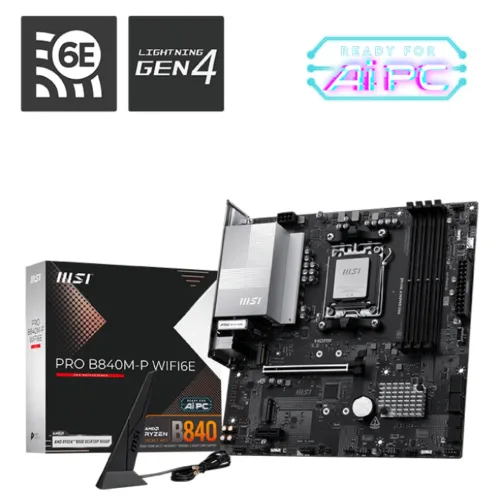

MSI PRO B840M-P WIFI6E AM5 mATX Motherboard

Status
In Stock
8 stores
Lowest 18,500 BDT
Price Range 18,500 to 18,900 BDT Save 2%
MSI PRO B840M-P WIFI6E AM5 mATX Motherboard

Product Description

MSI PRO B840M-P WIFI6E AM5 mATX Motherboard

The MSI PRO B840M-P WIFI6E motherboard is designed for modern PC builders who demand high-performance, stability, and flexibility in a compact micro-ATX form factor. This board offers a future-proof solution for both gaming and professional applications, supporting the latest AMD Ryzen 9000, 8000, and 7000 series desktop CPUs with socket AM5.

Key Features and Performance Highlights

  • Supports up to 256GB of DDR5 memory with dual-channel design and overclocked rates of 8000+ MT/s
  • Two M.2 slots with PCIe 4.0 x4 NVMe SSD support and four SATA 6Gb/s connections for robust storage
  • Realtek 8125D 2.5G LAN and built-in Wi-Fi 6E with Bluetooth 5.3 for high-speed networking
  • 1x HDMI 2.1 port with 4K @ 60Hz support for onboard graphics
  • Realtek ALC897 7.1-channel high-definition audio for immersive entertainment

Advanced Technologies and Features

The MSI PRO B840M-P WIFI6E motherboard boasts several innovative technologies, including:

AMD EXPO

The MSI PRO B840M-P WIFI6E motherboard supports AMD EXPO, a feature that enables easier and more stable RAM overclocking. This technology allows users to unlock the full potential of their system by enabling higher memory frequencies and improved performance.

Durable Thermal Solutions

The MSI PRO B840M-P WIFI6E motherboard features a 7+2+1 power phase system, expanded heatsinks, and MOSFET thermal pads rated at 7W/mK, ensuring consistent cooling for high-performance applications.

Compatibility and Support

The MSI PRO B840M-P WIFI6E motherboard supports Windows 11 64-bit and comes with a range of RGB headers and durable thermal solutions, making it an ideal choice for users seeking a balanced combination of performance, durability, and user-friendly design.

Part ID: #CAN-01286 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI PRO B840M-P WIFI6E AM5 mATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Ultra Technology MSI PRO B840M-P WIFI6E AM5 mATX Motherboard
In Stock 18,500 4 hours ago
Buy Now
Skyland BD MSI PRO B840M-P WIFI6E AM5 mATX Motherboard
In Stock 18,700 4 hours ago
Buy Now
Creatus Computer MSI PRO B840M-P WIFI6E AM5 mATX Motherboard
In Stock 18,800 5 hours ago
Buy Now
TechLand BD MSI PRO B840M-P WIFI6E AMD DDR5 mATX Motherboard
In Stock 18,900 5 hours ago
Buy Now
Nexus Computer MSI PRO B840M-P WIFI6E AM5 mATX Motherboard
In Stock 18,900 4 hours ago
Buy Now
Sell Tech MSI PRO B840M-P WIFI6E AM5 mATX Motherboard
Check Stock 18,900 4 hours ago
Buy Now
UCC MSI PRO B840M-P WIFI6E AM5 DDR5 Motherboard
Check Stock 19,200 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD B840
BIOS Flash BIOS Button
Form Factor mATX 243.84mmx243.84mm
Audio Realtek ALC897 7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory 256GB

Graphics

Graphics 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz

Connector & Ports

HDMI 1x HDMI
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear)
LAN Port (s) Realtek 8125D 2.5G LAN
Wireless Communication module Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 4x EZ Debug LED 1x EZ Memory Detection LED

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model PRO B840M-P WIFI6E
Supported CPU AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM 4x DDR5 UDIMM, Up to 8000 (OC) Mhz, Max. 256GB
Graphics Output 1x HDMI 2.1, maximum resolution of 4K 60Hz
Features 2x M.2 Slot, Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
Part ID: #CAN-01286 Last Updated: 1 month ago
