Status
In Stock
8 stores
Lowest Deal
14,500 BDT
Best Deal
Price Range
14,500 to 15,900 BDT
Save 9%
Product Description

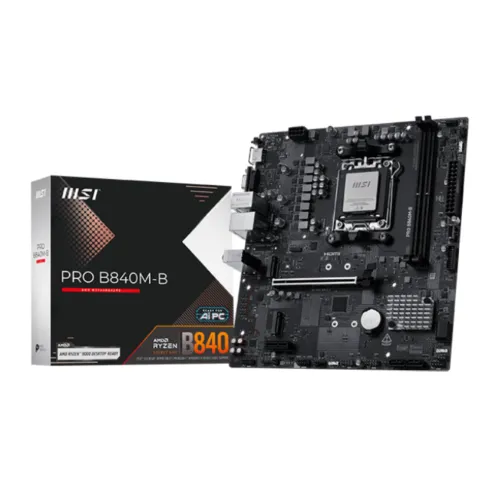

Upgrade Your Gaming Experience with the MSI PRO B840M-B Motherboard
The MSI PRO B840M-B Motherboard is the perfect choice for gamers and content creators seeking a high-performance platform for their AMD Ryzen 9000, 8000, and 7000 Series desktop CPUs. With its powerful features and robust design, this motherboard delivers exceptional gaming and productivity capabilities.
Key Features and Performance Benefits
Technical Highlights:
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
- 2x DDR5 UDIMM slots with overclocking speeds up to 8000 MHz for Ryzen 9000 Series CPUs
- 1x HDMI 2.1 output supporting up to 4K 60Hz and 1x VGA for legacy displays
- 2x M.2 slots with PCIe 4.0 x4 compatibility for 2280/2260 devices and four SATA 6G connections
- Realtek 8125D 2.5G LAN and numerous USB ports for connectivity
MSI's Innovative Technologies
Exclusive Features:
The MSI PRO B840M-B Motherboard features Realtek ALC897 for 7.1-channel high-definition audio and a Flash BIOS Button for easy BIOS updates. Additionally, it includes EZ Debug LED and EZ Memory Detection LED for simplified setup and debugging. With its robust design and user-friendly features, this motherboard is ideal for both productivity and gaming builds.
Part ID: #CAN-01005
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI PRO B840M-B AMD AM5 mATX Motherboard
|
In Stock | 14,500 | 1 week ago | |
|
TechLand BD
MSI PRO B840M-B AM5 AMD mATX Motherboard
|
In Stock | 14,900 | 4 hours ago | |
|
Nexus Computer
MSI PRO B840M-B AMD AM5 mATX Motherboard
|
In Stock | 15,100 | 3 hours ago | |
|
Creatus Computer
MSI PRO B840M-B AMD B840 Chipset AM5 mATX Motherboard
|
In Stock | 15,199 | 4 hours ago | |
|
Ultra Technology
MSI PRO B840M-B AMD AM5 mATX Motherboard
|
In Stock | 15,200 | 3 hours ago | |
|
Sell Tech
MSI PRO B840M-B AMD AM5 mATX Motherboard
|
In Stock | 15,500 | 4 hours ago | |
|
Skyland BD
MSI PRO B840M-B AMD AM5 mATX Motherboard
|
In Stock | 15,500 | 3 hours ago | |
|
UCC
MSI PRO B840M-B AMD AM5 DDR5 mATX Motherboard
|
In Stock | 15,900 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B840
BIOS
Flash BIOS Button
Form Factor
mATX 226mmx243.84mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
M.2 Socket
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
Memory
Type
DDR5
Slots
2x UDIMM
Supported Memory
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory
128GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector & Ports
HDMI
1x HDMI
VGA (s)
1x VGA
USB (s)
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
LAN Port (s)
Realtek 8125D 2.5G LAN
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
PRO B840M-B
Supported CPU
AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM
2x DDR5 UDIMM, Up to 8000 (OC) MHz, Max. 128GB
Graphics Output
1x HDMI 2.1, 1x VGA, Maximum resolution of 4K 60Hz
Features
2x M.2 Slot, Realtek 8125D 2.5G LAN
Part ID: #CAN-01005
Last Updated: 1 month ago
