Status
In Stock
8 listings tracked
Lowest Deal
22,500
Best Deal
Price Range
Single price listing
Product Description

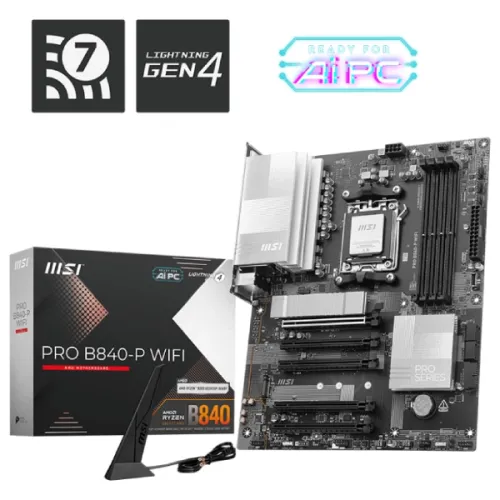

Engineered by MSI, this motherboard is designed for **AM5** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **22,500 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01058
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
MSI PRO B840-P WIFI AM5 ATX AMD Motherboard
|
In Stock | 22,000 | 2 hours ago | |
|
Creatus Computer
MSI PRO B840-P WIFI AM5 AMD Motherboard
|
In Stock | 22,400 | 2 hours ago | |
|
Star Tech
MSI PRO B840-P WIFI AMD AM5 ATX Motherboard
|
In Stock | 22,500 | 2 hours ago | |
|
Ultra Technology
MSI PRO B840-P WIFI AMD AM5 ATX Motherboard
|
In Stock | 22,500 | 2 hours ago | |
|
Skyland BD
MSI PRO B840-P WIFI AMD AM5 ATX Motherboard
|
In Stock | 22,500 | 1 hour ago | |
|
Nexus Computer
MSI PRO B840-P WIFI AMD AM5 ATX Motherboard
|
In Stock | 22,800 | 2 hours ago | |
|
Sell Tech
MSI PRO B840-P WIFI AMD AM5 ATX Motherboard
|
Check Stock | 22,900 | 2 hours ago | |
|
PCB Store
MSI PRO B840-P WIFI AM5 ATX Motherboard
|
Check Stock | 23,000 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B840
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
M.2 Socket
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
Memory
Type
DDR5
Slots
4x DDR5 UDIMM
Supported Memory
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory
256GB
Connector & Ports
HDMI
1x HDMI
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear)
LAN Port (s)
Realtek 8125D 2.5G LAN
Wireless Communication module
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices 4x SATA 6G M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Internal I/O Ports
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
PRO B840-P WIFI
Supported CPU
AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM
4x DDR5, Dual Channel DDR5 8000+ MT/s (OC), Max 256GB
Graphics Output
1x HDMI 2.1, maximum resolution of 4K 60Hz
Features
2x M.2 Slot, Realtek 8125D 2.5G LAN, Wi-Fi 7
Part ID: #CAN-01058
Last Updated: 2 days ago
The MSI PRO B840-P WiFi is an AM5 ATX motherboard that supports AMD Ryzen 9000, 8000, and 7000 Series processors. It uses the AM5 socket and the AMD B840 chipset to provide high computing capabilities. It offers exceptional multitasking and responsiveness with support for up to 256GB of DDR5 memory in dual-channel mode and speeds of up to 8000+ MT/s (overclocked). The 6-layer PCB with thickened copper improves performance and durability, while the MSI PRO B840-P WIFI Motherboard's direct 7+2+1 phase power system, P-PAK, Core Boost, and Memory Boost guarantee stability under heavy loads. Extended heatsinks, MOSFET thermal pads, and EZ M.2 Shield Frozr II are all part of the MSI DDR5 motherboard's Frozr Guard cooling technology, which effectively dissipates heat under demanding workloads. The MSI PRO B840-P WIFI AM5 ATX Motherboard offers a variety of high-speed storage solutions with two PCIe 4.0 M.2 slots and four SATA 6G ports that support RAID 0, 1, and 10. A variety of components are compatible with the PCIe 3.0 slots, and the PCIe 4.0 x16 slot offers a lightning-fast gaming experience. Wi-Fi 7 offers lightning-fast networking at up to 5.8Gbps, while 2.5G LAN provides reliable, secure connectivity. Along with a number of USB ports, including USB 10Gbps Type-C and Type-A ports, the MSI PRO B840-P WIFI AM5 ATX Motherboard also has standard RGB LED connectors and Addressable V2 for RGB customization. The Realtek ALC897, which powers the audio, produces 7.1-channel HD audio. The ATX form factor, which was created for Windows 11 64-bit, guarantees compatibility with sophisticated PC configurations. The MSI PRO B840-P WiFi motherboard is enhanced with EZ DIY features like EZ M.2 and PCIe Clips, TPM 2.0 support for security, and HDMI 2.1 for 4K 60Hz displays.Buy MSI PRO B840-P WIFI AMD AM5 ATX Motherboard from Star TechIn Bangladesh, you can get original MSI PRO B840-P WIFI AMD AM5 ATX Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI PRO B840-P WIFI AMD AM5 ATX Motherboard comes with 3 years warranty.
