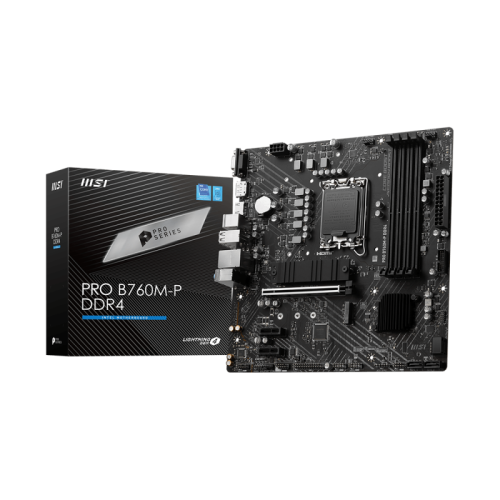

MSI PRO B760M-P DDR4 mATX Motherboard

Status
In Stock
6 stores
Lowest Out of Stock
Price Range Single price listing
MSI PRO B760M-P DDR4 mATX Motherboard

Product Description

Upgrade Your Gaming Experience with MSI PRO B760M-P DDR4

The MSI PRO B760M-P DDR4 motherboard is designed for serious gamers and enthusiasts who demand exceptional performance, sleek design, and rock-solid reliability. With its robust feature set, this motherboard is the perfect choice for building a next-generation gaming PC that can handle even the most demanding games and applications.

Key Technical Features and Performance Benefits

The MSI PRO B760M-P DDR4 motherboard boasts an impressive lineup of features that make it stand out from the competition. Here are some of the key highlights:

  • Support for 14th/13th/12th Gen Intel Core Processors - Enjoy unparalleled performance and power efficiency with the latest Intel processors.
  • Dual-Channel DDR4 Memory Support - Upgrade your RAM to take full advantage of the motherboard's memory bandwidth.
  • Realtek RTL8111H Gigabit LAN - Stay connected with fast and reliable wired networking.
  • Two M.2 Slots and Four SATA 6G Ports - Expand your storage options with high-speed M.2 drives and SATA 6G ports.
  • Support for HDMI, DisplayPort, and VGA Outputs - Enjoy stunning visuals with multiple display options.
Enhanced Power Design and Premium Thermal Solution

The MSI PRO B760M-P DDR4 motherboard is engineered to deliver exceptional performance and reliability, thanks to its advanced power design and premium thermal solution. The motherboard features a 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost technology, and Digital Power Design, which work together to provide stable and efficient power delivery to your system's components. Additionally, the motherboard's Extended Heatsink Design, M.2 Shield Frozr, and fully fan-controlled cooling system ensure that your system stays cool and quiet even under intense loads.

Part ID: #CAN-01266 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI PRO B760M-P DDR4 mATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
UCC MSI PRO B760M-P DDR4 ATX Motherboard
In Stock 14,500 4 hours ago
Buy Now
PC House MSI PRO B760M-P DDR4 13TH GEN & 12TH GEN MATX MOTHERBOARD
In Stock 14,999 3 hours ago
Buy Now
Binary Logic MSI PRO B760M-P DDR4 mATX Gaming Motherboard
In Stock 15,100 4 hours ago
Buy Now
Creatus Computer MSI PRO B760M-P DDR4 13th Gen & 12th Gen mATX Motherboard
Check Stock 13,400 4 hours ago
Buy Now
TechLand BD MSI PRO B760M-P DDR4 13TH GEN & 12TH GEN MATX MOTHERBOARD
Check Stock 15,300 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Form Factor mATX 243.84mmx243.84mm
Audio Realtek RTL8111H Gigabit LAN

Expansion Slots

PCI 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)

Memory

Type DDR4
Slots 4
Supported Memory 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 128GB

Graphics

Graphics 1x HDMI 1x DisplayPort 1x VGA Support HDMI 1.4, maximum resolution of 4K 30Hz Support DP 1.4, maximum resolution of 4K 60Hz Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
VGA (s) 1x VGA
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear)
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 4x EZ Debug LED

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model PRO B760M-P DDR4
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 4x DDR4, Max 128GB 4800(OC)
Graphics Output 1x HDMI, 1x DisplayPort, 1x VGA
Features 2x M.2 slot, Realtek RTL8111H Gigabit LAN
Part ID: #CAN-01266 Last Updated: 1 month ago
