Product Description

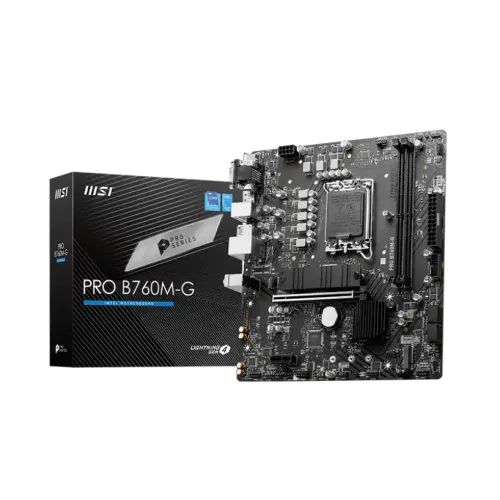

Upgrade Your Gaming Experience with the MSI PRO B760M-G mATX Motherboard
The MSI PRO B760M-G mATX Motherboard is designed for gamers and PC enthusiasts who demand high-performance, cutting-edge technology, and unparalleled stability. This micro-ATX motherboard is the perfect choice for those seeking to upgrade their gaming setup and experience seamless performance.
Key Features and BenefitsThe MSI PRO B760M-G mATX Motherboard boasts the following key features and benefits:
- Supports 14th, 13th, and 12th Gen Intel Core Processors - Ensuring compatibility with the latest Intel CPU generations
- DDR5 Memory Support - Delivers faster memory speeds and improved performance
- PCIe 4.0 and Lightning Gen4 x4 M.2 - Enables faster data transmission rates and enhanced performance for gaming and high-performance applications
- Realtek RTL8125B 2.5Gbps LAN - Provides a secure, stable, and fast network connection for professional and multimedia use
- AUDIO BOOST and Steel Armor - Delivers studio-quality sound and prevents VGA cards from bending and EMI, resulting in improved performance, stability, and strength
The MSI PRO B760M-G mATX Motherboard features several proprietary technologies that enhance performance and stability:
Core Boost and Memory Boost - Enable the motherboard to accommodate more cores and provide higher performance, as well as produce pure data signals for the highest performance, stability, and compatibility.
Part ID: #CAN-01270
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset
INTEL B760
Form Factor
mATX 220mmx243.84mm
Audio
Realtek ALC897 Codec 7.1-Channel High-Definition Audio
Expansion Slots
PCI
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Memory
Type
DDR5
Slots
2
Supported Memory
DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory
96GB
Graphics
Graphics
1x HDMI Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
VGA (s)
1x VGA
USB (s)
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)
Realtek RTL8125B 2.5Gbps LAN
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRO B760M-G
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
2x DDR5, Max 96GB 6400+(OC)
Graphics Output
1x HDMI, 1x DP, 1x VGA
Features
2x M.2 slot, Realtek RTL8125B 2.5Gbps LAN
Part ID: #CAN-01270
Last Updated: 1 month ago
