Product Description

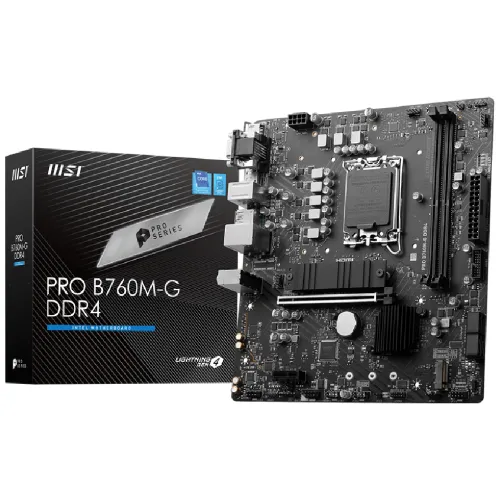

MSI PRO B760M-G DDR4 mATX Motherboard
Upgrade Your Build with Unmatched Performance
The MSI PRO B760M-G DDR4 mATX Motherboard is designed for users who demand top-notch performance, reliability, and versatility. Whether you're a content creator, gamer, or professional user, this motherboard delivers a seamless experience, making it an excellent choice for those who value precision and power.
Key Features and Benefits
- Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
- DDR4 memory with dual-channel configuration and clock speed of 4800+MHz (when overclocked)
- 2.5 Gigabit LAN connector for fast and reliable network connections
- 2x M.2 slots with PCIe 4.0 compatibility and M.2 Shield Frozr for high-speed storage devices
- Realtek ALC897 Codec 7.1-Channel High-Definition Audio for immersive audio experiences
Advanced Technologies
Unlock Unprecedented Performance with MSI's Expertise
The MSI PRO B760M-G DDR4 Motherboard features a range of innovative technologies that elevate performance, stability, and compatibility. From the Core Boost technology that enhances CPU performance to the Memory Boost technology that ensures clean and reliable data signals, every detail is designed to deliver exceptional results.
Part ID: #CAN-01260
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI PRO B760M-G DDR4 mATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Creatus Computer
MSI PRO B760M-G DDR4 mATX Motherboard
|
In Stock | 13,499 | 4 hours ago | |
|
Ultra Technology
MSI PRO B760M-G DDR4 Intel Motherboard
|
In Stock | 13,500 | 4 hours ago | |
|
Skyland BD
MSI PRO B760M-G DDR4 mATX Motherboard
|
In Stock | 13,800 | 4 hours ago | |
|
TechLand BD
MSI PRO B760M-G DDR4 12TH & 13TH GEN MATX MOTHERBOARD
|
In Stock | 13,900 | 4 hours ago | |
|
PC House
MSI PRO B760M-G DDR4 12TH & 13TH GEN MATX MOTHERBOARD
|
In Stock | 15,790 | 4 hours ago | |
|
Binary Logic
MSI PRO B760M-G DDR4 LGA1700 mATX Motherboard
|
In Stock | 16,500 | 4 hours ago | |
|
Sell Tech
MSI PRO B760M-G DDR4 mATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
UCC
MSI PRO B760M-G DDR4 mATX Motherboard
|
Check Stock | 14,000 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset
INTEL B760
Form Factor
mATX 220mmx243.84mm
Audio
Realtek ALC897 Codec 7.1-Channel High-Definition Audio
Expansion Slots
PCI
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Memory
Type
DDR4
Slots
2
Supported Memory
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory
64GB
Graphics
Graphics
1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
VGA (s)
1x VGA
USB (s)
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)
Realtek RTL8125B 2.5Gbps LAN
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRO B760M-G DDR4
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
2x DDR4, Max 64GB 4800(OC)
Graphics Output
1x HDMI, 1x DP, 1x VGA
Features
2x M.2 slot, Realtek RTL8125B 2.5Gbps LAN
