Product Description

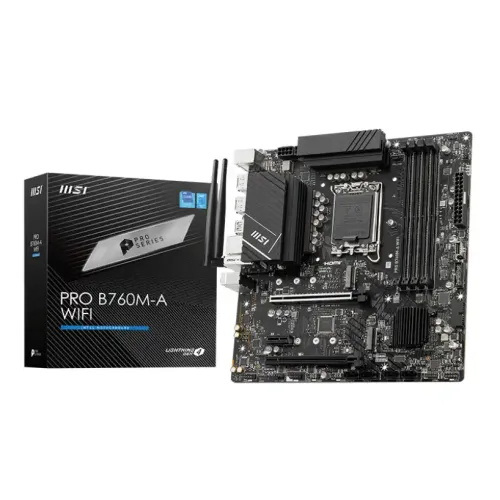

Build Your Dream Gaming PC with MSI PRO B760M-A WIFI mATX Motherboard
The MSI PRO B760M-A WIFI mATX Motherboard is designed for gamers and PC enthusiasts who demand high-performance and cutting-edge technology. With its robust features and sleek design, this motherboard is the perfect choice for building a powerful gaming PC that can handle the most demanding games and applications.
Key Features and Benefits- Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors LGA 1700
- Four dual-channel DDR5 RAM slots with support for up to 192GB of memory
- Two M.2 slots for high-speed storage and wireless connectivity
- Realtek ALC897 Codec 7.1-Channel High-Definition Audio and Intel Wi-Fi 6E wireless connectivity
- Two PCIe x16 slots and one PCIe x1 slot for expansion cards
Enhanced Power Design - MSI's 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost technology, and MSI Game Boost for rapid overclocking.
Premium Thermal Solution - Extended Heatsink Design, M.2 Shield Frozr, Fully Fan Control, Frozr AI Cooling, and System Cooling for optimal component temperatures.
High-Quality PCB for Enhanced Protection - 2oz thickened copper for reliable circuit transmission and double ESD protection for preventing static discharge spikes.
Part ID: #CAN-01041
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI PRO B760M-A WIFI mATX Motherboard
|
In Stock | 18,500 | 1 week ago | |
|
Computer Village
MSI PRO B760M-A WIFI mATX Motherboard
|
In Stock | 18,500 | 4 hours ago | |
|
Sell Tech
MSI PRO B760M-A WIFI mATX Motherboard
|
In Stock | 19,200 | 4 hours ago | |
|
Creatus Computer
MSI PRO B760M-A WIFI 12th Gen & 13th Gen mATX Motherboard
|
In Stock | 19,399 | 4 hours ago | |
|
Skyland BD
MSI PRO B760M-A WIFI mATX Motherboard
|
In Stock | 19,600 | 3 hours ago | |
|
PCB Store
MSI PRO B760M-A WIFI mATX Motherboard
|
Check Stock | 19,000 | 4 hours ago | |
|
UCC
MSI PRO B760M-A WIFI M-ATX Motherboard
|
Check Stock | 19,900 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset
INTEL B760
Form Factor
mATX 243.84mmx243.84mm
Audio
Realtek ALC897 Codec 7.1-Channel High-Definition Audio
Expansion Slots
PCI
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory
Type
DDR5
Slots
4
Supported Memory
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory
192GB
Graphics
Graphics
2x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
2x HDMI
Display Port (s)
2x DisplayPort
USB (s)
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear)
LAN Port (s)
Realtek RTL8125BG 2.5G LAN
Wireless Communication module
Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio
3x Audio Connectors
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRO B760M-A WIFI
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR5, Max 192GB 6800+MHz (OC)
Graphics Output
2x HDMI, 2x DisplayPort
Features
2x M.2 slot, Intel Wi-Fi 6E
Part ID: #CAN-01041
Last Updated: 1 month ago
