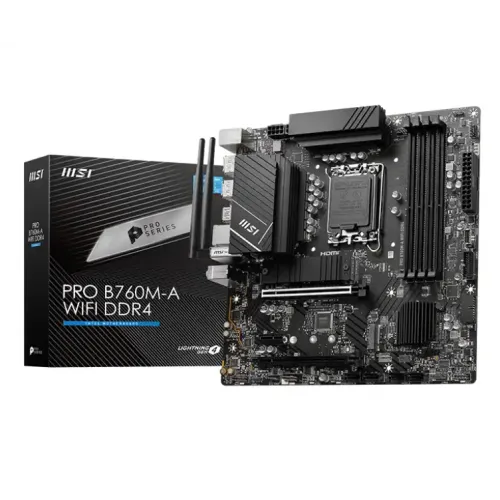

MSI PRO B760M-A WIFI DDR4 mATX Motherboard

Status
In Stock
3 stores
Lowest Out of Stock
Price Range Single price listing
MSI PRO B760M-A WIFI DDR4 mATX Motherboard

Product Description

Upgrade Your Gaming Experience with MSI PRO B760M-A WIFI DDR4 mATX Motherboard

Designed for gamers and enthusiasts, the MSI PRO B760M-A WIFI DDR4 mATX Motherboard is built to deliver high-performance and reliability. With its cutting-edge features and robust design, this motherboard is perfect for those seeking to upgrade their gaming experience.

Key Features and Benefits
  • Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron processors for LGA 1700 sockets
  • Four dual-channel RAM slots with support for up to 128GB of DDR4 memory
  • Two M.2 slots for high-speed storage and Wi-Fi 6E connectivity
  • Two PCIe x16 slots for high-end graphics cards and expansion cards
  • 2.5 Gigabit Ethernet and Wi-Fi 6E connectivity for fast and reliable networking
  • Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Enhanced Power Design and Cooling

The MSI PRO B760M-A WIFI DDR4 Motherboard features a 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, and a robust cooling system with Extended Heatsink Design and M.2 Shield Frozr. This ensures stable and efficient power delivery, even under high loads.

High-Quality PCB and Enhanced Protection

The motherboard features a high-quality PCB optimized for higher bandwidth and faster transfer speeds, as well as reliable circuit transmission with 2oz thickened copper. The MSI PCI Express Steel Armor slot is also soldered to the motherboard to handle the weight of large graphics cards and prevent damage.

Part ID: #CAN-01284 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI PRO B760M-A WIFI DDR4 mATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
PC House MSI PRO B760M-A WIFI DDR4 mATX Motherboard
In Stock 21,000 4 hours ago
Buy Now
Binary Logic MSI PRO B760M-A WIFI DDR4 mATX Motherboard
In Stock 21,500 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Form Factor mATX 243.84mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High-Definition Audio

Expansion Slots

PCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G

Memory

Type DDR4
Slots 4
Supported Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 128GB

Graphics

Graphics 2x HDMI Support HDMI 2.1, the maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, the maximum resolution of 4K 60Hz

Connector & Ports

HDMI 2x HDMI
Display Port (s) 2x DisplayPort
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear)
LAN Port (s) Realtek RTL8125BG 2.5G LAN
Wireless Communication module Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 1x RGB LED connector(JRGB)

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model PRO B760M-A WIFI DDR4
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 4x DDR4, Max 128GB 5333(OC)
Graphics Output 1x HDMI, 1x DisplayPort, 1x VGA
Features 2x M.2 slot, Intel Wi-Fi 6E
Part ID: #CAN-01284 Last Updated: 1 month ago
