Product Description
Engineered by MSI, this motherboard is designed for **LGA1700** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. This item is currently out of stock or unavailable at our tracked local computer stores in Bangladesh.
Part ID: #CAN-09509
Last Updated: 2 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech

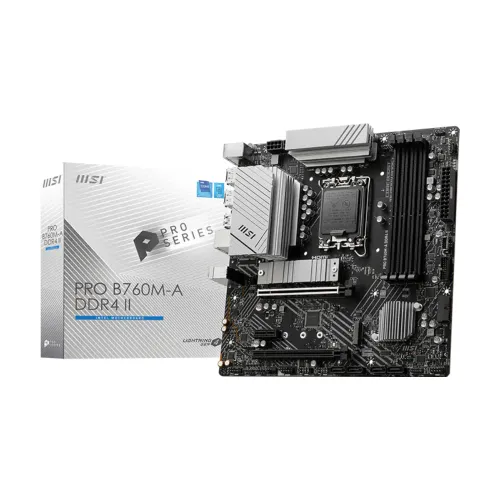

MSI PRO B760M-A DDR4 II mATX Motherboard
|
In Stock | Call for Price | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset
INTEL B760
Form Factor
mATX 243.84mmx243.84mm
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
Memory
Type
DDR4
Slots
4
Supported Memory
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory
128GB
Graphics
Graphics
2x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
2x HDMI 2.1
Display Port (s)
2x DisplayPort 1.4
USB (s)
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear)
LAN Port (s)
Realtek RTL8125BG 2.5G LAN
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED Support for Windows 11 64-bit, Windows 10 64-bit
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRO B760M-A DDR4 II
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR4, Max 128GB 5333(OC)
Graphics Output
2x HDMI 2.1, 2x DisplayPort 1.4
Features
2x M.2, Realtek RTL8125BG 2.5G LAN
Part ID: #CAN-09509
Last Updated: 2 hours ago
MSI PRO B760M-A WIFI DDR4 mATX Motherboard The MSI PRO B760M-A DDR4 II mATX Motherboard is built for Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors on the LGA 1700 socket. This Motherboard runs on the Intel B760 chipset and supports four DDR4 memory slots with a maximum capacity of 128GB. Dual-channel DDR4 memory runs at speeds up to 5333MHz via overclocking, with full XMP support and non-ECC unbuffered memory compatibility. A robust 12+1 Duet Rail Power System with P-PAK, Core Boost, and an 8-pin plus 4-pin CPU power connector delivers stable power for demanding workloads. The MSI PRO B760M-A DDR4 II Motherboard features an extended heatsink, 7W/mK MOSFET thermal pads, choke thermal pads, and M.2 Shield Frozr for sustained thermal performance. A premium 6-layer PCB built with 2oz thickened copper ensures signal integrity and long-term structural durability. The MSI DDR4 Motherboard offers two PCIe x16 slots and one PCIe x1 slot, with the primary slot running PCIe 4.0 at full x16 bandwidth from the CPU. Two M.2 slots both support PCIe 4.0 x4 speeds, with the second slot also offering SATA mode compatibility for flexible storage options. Four SATA 6G ports support RAID 0, 1, 5, and 10 configurations for versatile storage setups. Onboard graphics output includes two HDMI 2.1 and two DisplayPort 1.4 ports, each supporting up to 4K 60Hz resolution. The MSI PRO B760M-A DDR4 II mATX Motherboard includes Realtek ALC897 7.1-channel HD audio for immersive sound quality. Rear USB ports include two USB 2.0, two USB 5Gbps Type-A, and two USB 10Gbps Type-A connections for broad peripheral support. A Realtek RTL8125BG 2.5G LAN controller delivers fast, stable network performance for gaming and multimedia use. Four EZ Debug LEDs simplify hardware troubleshooting during system builds significantly. The MSI Motherboard supports Windows 10 and Windows 11 64-bit operating systems on a compact 243.84×243.84mm mATX form factor.Buy MSI PRO B760M-A WIFI DDR4 mATX Motherboard from best Motherboard Shop in BDIn Bangladesh, you can get the original MSI PRO B760M-A WIFI DDR4 mATX Motherboard From Star Tech. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI PRO B760M-A WIFI DDR4 Motherboard comes with 3 years warranty.
