Status
In Stock
5 listings tracked
Lowest Deal
19,700
Best Deal
Price Range
Single price listing
Product Description

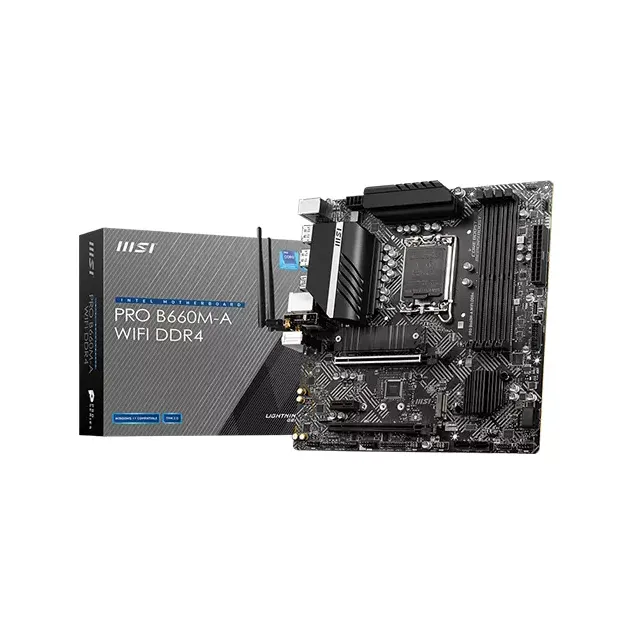

Engineered by MSI, this motherboard is featuring a **MICRO-ATX** form factor and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **19,700 ৳**, compared dynamically across 5 major computer shops.
Part ID: #CAN-01678
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Nexus Computer
MSI PRO B660M-A WIFI DDR4 12th Gen Micro-ATX Motherboard
|
In Stock | 19,700 | 2 hours ago | |
|
Binary Logic
MSI PRO B660M-A WIFI DDR4 Micro-ATX Motherboard
|
Check Stock | 17,500 | 2 hours ago | |
|
Creatus Computer
MSI PRO B660M-A WIFI DDR4 12th Gen Micro-ATX Motherboard
|
Check Stock | 18,500 | 2 hours ago | |
|
TechLand BD
MSI PRO B660M-A WIFI DDR4 MICRO-ATX 12TH GEN INTEL MOTHERBOARD
|
Check Stock | 19,700 | 2 hours ago | |
|
PC House
MSI Pro B660M-A Wifi DDR4 Micro-ATX 12th Gen Intel Motherboard
|
Check Stock | 20,000 | 2 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
1x Realtek RTL8125BG 2.5Gbps LAN controller
USB
1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From B660 chipset) Supports additional 4 USB 2.0 ports
WiFi
Intel Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Slots
2x PCIe x16 slots PCI_E1 (From CPU) Support PCIe 4.0 x16 PCI_E3 (From B660 chipset) Support PCIe 3.0 x4 1x PCIe 3.0 x1 slot (Fom B660 chipset)
Memory
4x DDR4 memory slots, support up to 128GB Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memoryy Supports Intel® Extreme Memory Profile (XMP)
Chipset
Intel B660 Chipset
Graphics
2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60
Warranty
03 Years
Dimension
Micro-ATX Form Factor
Multi-GPU
Supports AMD CrossFire Technology
Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU
Supports 12th Gen Intel Core Processors Processor socket LGA1700
Supported Storage
4x SATA 6Gb/s ports (From B660 chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory Support Intel® Smart Response Technology for Intel Core™ processors
External I/O Ports
Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps Type-A LAN port Wi-Fi / Bluetooth Audio connector USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A
Internal I/O Ports
1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From B660 chipset) Supports additional 4 USB 2.0 ports 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning Controller connector 1x TBT connector (supports RTD3) 1x Serial port
Part ID: #CAN-01678
Last Updated: 2 days ago
MSI PRO B660M-A WIFI DDR4 12th Gen Micro-ATX Motherboard MSI PRO B660M-A WIFI DDR4 Featuring with stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. This motherboard Supports with 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4800+(OC) MHz. With the premium layout and digital power design to support more cores and provide better performance. This motherboard has Advanced technology, that helps to deliver pure data signals for the best performance, stability and compatibility. This motherboard has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr. The MSI PRO B660M-A WIFI DDR4 motherboard comes with Premium Thermal Solution, which featured with 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works. You can Upgraded network solution with 2.5G LAN for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for professional gamers and demanding users. The Latest MSI PRO B660M-A WIFI DDR4 motherboard offeres 03 years warranty.
