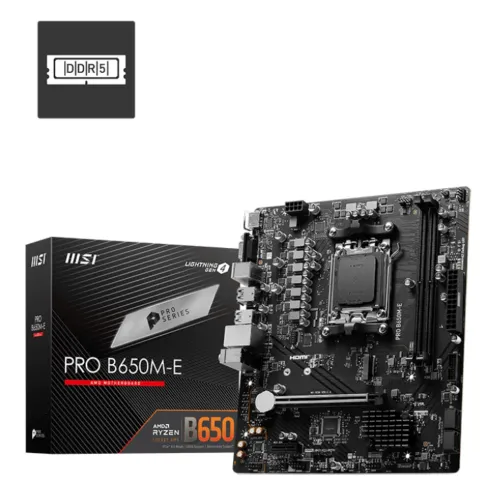

MSI PRO B650M-E AM5 mATX Motherboard

Product Description

MSI PRO B650M-E AM5 mATX Motherboard

This high-performance motherboard is designed for PC enthusiasts and professionals who demand the latest technology and exceptional performance. The MSI PRO B650M-E AM5 mATX Motherboard is a future-ready platform that supports the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, making it an ideal choice for gamers, system builders, and business users.

Key Features and Benefits

Key Highlights:

  • Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
  • DDR5 memory support with speeds up to 6800+ MHz (OC)
  • 1x HDMI 2.1 port with 4K resolution at 60Hz support
  • Realtek RTL8111H Gigabit LAN for stable and fast wired Ethernet connectivity
  • Robust expansion options with 1x PCI-E 4.0 x16 slot and 1x PCI-E 3.0 x1 slot

Exclusive Technologies and Features:

Advanced Performance and Compatibility:

The MSI PRO B650M-E Motherboard supports the latest AMD Ryzen processors, offering exceptional performance and compatibility. It features advanced technologies such as AMD EXPO, which allows for optimal memory performance and stability. Additionally, the motherboard includes a range of innovative features, including 4x EZ Debug LED indicators for quick system diagnosis and troubleshooting.

Robust Connectivity and Storage:

The MSI PRO B650M-E Motherboard offers extensive connectivity options, including 2x rear USB 2.0 ports, 4x front USB 2.0 ports, 4x rear USB 5Gbps Type-A ports, and 2x front USB 5Gbps Type-A ports. It also features 1x M.2 slot (PCIe 4.0 x4) and 4x SATA 6Gb/s ports, ensuring fast data access and generous storage expandability.

Part ID: #CAN-01253 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI PRO B650M-E AM5 mATX Motherboard
In Stock Call for Price 1 week ago
Ultra Technology MSI PRO B650M-E AM5 mATX Motherboard
In Stock 11,500 4 hours ago
Binary Logic MSI PRO B650M-E AM5 m-ATX Motherboard
In Stock 11,700 4 hours ago
Skyland BD MSI PRO B650M-E AM5 mATX Motherboard
In Stock 12,300 4 hours ago
PCB Store MSI PRO B650M-E AM5 MATX Motherboard
Check Stock 11,700 4 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD B650
BIOS Flash BIOS Button
Form Factor mATX 211mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot Supports x16 (For Ryzen 9000/ 7000 Series processors) Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G

Memory

Type DDR5
Slots 2 x UDIMM
Supported Memory Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 6800+ MHz 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory 128GB

Graphics

Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Connector & Ports

HDMI 1x HDMI 2.1
VGA (s) 1x VGA
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 4x EZ Debug LED

Warranty Information

Manufacturing Warranty 3 Years Warranty

Key Features

Model PRO B650M-E
Supported CPU Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM 2x DDR5, up to 6800+ (OC)
Graphics Output 1x HDMI, 1x VGA
Features Realtek RTL8111H Gigabit LAN
Part ID: #CAN-01253 Last Updated: 1 month ago
