Status
In Stock
7 stores
Lowest Deal
20,700 BDT
Best Deal
Price Range
Single price listing
Product Description

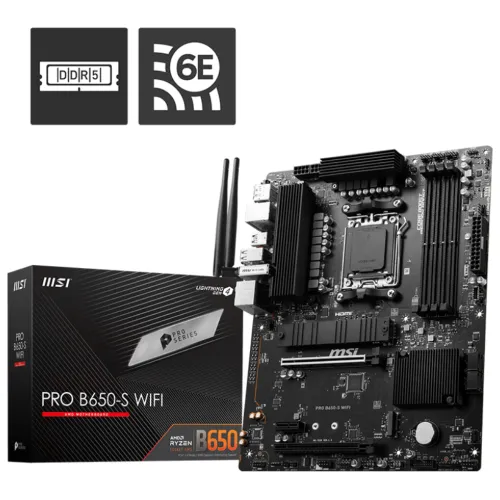

Upgrade Your Gaming Experience with the MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard
Designed for gamers and professionals seeking top-tier performance and functionality, the MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard is engineered to deliver a powerful foundation for heavy workloads and demanding applications.
Key Features and Benefits
Key Highlights:
- Supports AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors for Socket AM5
- DDR5 memory compatibility with dual-channel DDR5 7200+MHz (OC)
- 12+2 Duet Rail Power System for reliable and efficient power supply
- PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2x2 connections
- 2.5G LAN and Wi-Fi 6E for a secure, reliable, and fast network connection
Advanced Technologies for Enhanced Performance
MSI's Innovative Features:
The MSI PRO B650-S WIFI Motherboard boasts a range of cutting-edge technologies, including a premium thermal solution with 7W/mK MOSFET thermal pads and M.2 Shield Frozr, which ensures efficient heat dissipation and high-performance capabilities. Additionally, the motherboard's high-quality 6-layer PCB, constructed of 2oz thicker copper, improves longevity and stability, making it an ideal choice for heavy workloads and demanding applications.
Part ID: #CAN-01048
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
MSI PRO B650-S WIFI DDR5 AMD AM5 MOTHERBOARD
|
In Stock | 19,800 | 5 hours ago | |
|
Skyland BD
MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard
|
In Stock | 19,999 | 4 hours ago | |
|
Nexus Computer
MSI PRO B650-S WIFI DDR5 AM5 Motherboard
|
In Stock | 20,000 | 4 hours ago | |
|
Star Tech
MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard
|
In Stock | 20,100 | 1 week ago | |
|
PCB Store
MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard
|
In Stock | 20,500 | 5 hours ago | |
|
Sell Tech
MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard
|
In Stock | 20,700 | 5 hours ago | |
|
PC House
MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard
|
In Stock | 21,000 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000 & 7000 Series Desktop Processors Socket AM5
Chipset
AMD B650
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory
192GB
Graphics
Graphics
1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Supports DP1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)
Realtek 8125BG 2.5G LAN
Wireless Communication module
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID
Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio
Audio Connectors
Internal I/O Ports
INTERNAL IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS: DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C)
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
PRO B650-S WIFI
Supported CPU
Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 7200+(OC) MHz
Graphics Output
1x HDMI, 1x Display Port
Features
2.5G LAN with Wi-Fi 6E Solution
Part ID: #CAN-01048
Last Updated: 1 month ago
