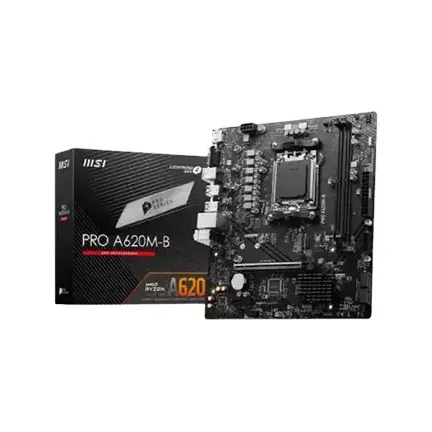

Unlock Your AMD Potential with the MSI PRO A620M-B

The MSI PRO A620M-B is designed for professionals and enthusiasts looking to build a future-ready AMD system, offering robust performance and cutting-edge technology.

Experience seamless multitasking, gaming, and content creation with this powerful micro-ATX motherboard.

Key Features and Benefits

Supports the latest Ryzen processors and DDR5 memory, with speeds reaching up to 6800+ MHz (OC)
Features 1 HDMI 2.1 port for up to 4K resolution at 60Hz and a VGA port with multiple resolution options
Includes 1 PCIe x16 slot supporting PCIe 4.0 and backward compatibility, plus an additional PCIe x1 slot
Equipped with 1 M.2 slot supporting PCIe 4.0 x4 SSDs and 4 SATA 6Gb/s ports with RAID configurations
Features fast Realtek RTL8125BG 2.5G LAN and multiple USB ports for reliable connectivity and data transfer

Advanced Technologies and Features

Realtek ALC897 Codec for Enhanced Audio

The MSI PRO A620M-B features the Realtek ALC897 Codec, delivering crisp 7.1-channel high-definition sound to enrich your multimedia experience.

TPM 2.0 and EZ Debug LEDs for Enhanced Security and Convenience

The motherboard supports TPM 2.0 for enhanced security and comes with 4 EZ Debug LEDs for easy troubleshooting.

Part ID: #CAN-01574 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily

Retailer	Stock Status	Price	Last Checked	Action
TechLand BD MSI PRO A620M-B AMD A620 Chipset AM5 mATX Motherboard	In Stock	Call for Price	4 hours ago	Buy Now
Ultra Technology MSI PRO A620M-B AMD A620 Chipset AM5 mATX Motherboard	In Stock	11,500	4 hours ago	Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

CPU Supports AMD Ryzen 9000/ 8000/ 7000Series Desktop ProcessorsSocket AM5

LAN Realtek RTL8125BG 2.5G LAN

USB 2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)

Audio Realtek ALC897 Codec,7.1-Channel High Definition AudioExpansion Slots

Brand MSI

Color Black

Model A620M-B

Memory Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s1DPC 1R Max speed up to 6800+ MHz1DPC 2R Max speed up to 6000+ MHz

Series PRO

Chipset AMD A620

Storage 1x M.2M.2_1 Source (From CPU)supports up to PCIe 4.0 x4,supports 2280/2260 devices4x SATA 6G

Graphics 1x HDMISupport HDMITM 2.1,maximum resolution of 4K 60Hz*1x VGASupport VGA, maximum resolutionof 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Warranty 3 years

Form Factor mATX215mmx243.84mm

Memory Size 128GB

Memory Slot 2

Memory Type DDR5

Expansion Slots PCI1x PCI-E x16 slotSupports x16 (For Ryzen 9000 and 7000 Series processors)Supports x8 (For Ryzen 8700/ 8600/ 8400 Series processors)Supports x4 (For Ryzen 8500/ 8300 Series processors)1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)M.2 Socket1x M.2

Internal I/O Ports 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Addressable V2 RGBLED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports
