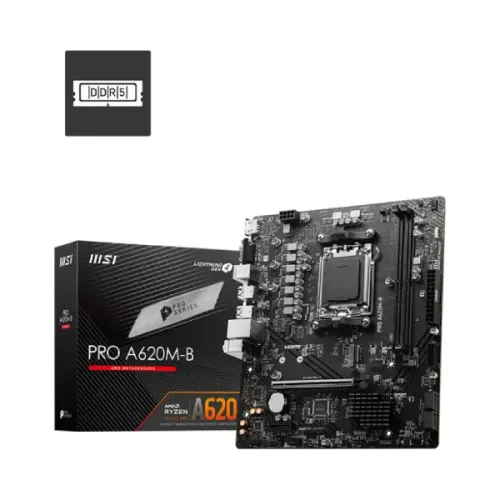

MSI PRO A620M-B AM5 mATX Motherboard

Upgrade your gaming and content creation experience with the MSI PRO A620M-B AM5 mATX Motherboard, designed for enthusiasts who demand cutting-edge performance and versatility. This compact powerhouse is perfect for customers looking to build a high-performance AMD system that meets their evolving needs.

Key Features

Technical Highlights:

• Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors via the AM5 socket
• Two DDR5 memory slots with support for up to 128GB of non-ECC, unbuffered dual-channel DDR5 RAM at overclocked speeds of up to 6800+ MHz
• PCIe 4.0 x16 slot that converts to x16, x8, or x4 depending on the CPU used, plus an extra PCIe 3.0 x1 slot
• Realtek RTL8125BG 2.5G LAN for ultra-fast wired connections
• Integrated Realtek ALC897 audio codec for 7.1-channel high-definition sound

Advanced Technologies and Performance Benefits

Expertise in Compact Performance:

The MSI PRO A620M-B AM5 mATX Motherboard features a robust design with a range of innovative technologies that deliver exceptional performance and flexibility. This includes support for AMD EXPO memory profiles, enabling users to unlock the full potential of their DDR5 memory. Additionally, the board's onboard graphics capability includes an HDMI 2.1 connector with 4K at 60Hz output and a legacy VGA port, making it an ideal solution for various display configurations.

Compatibility and Expansion Options

Expansion and Connectivity:

The MSI PRO A620M-B AM5 mATX Motherboard offers a range of expansion options and connectivity features, including four SATA 6Gbps ports that support RAID 0, 1, and 10, and one PCIe 4.0 x4 M.2 slot supporting 2280 and 2260 NVMe SSDs. Additionally, the board features a comprehensive range of internal headers and connectors, including addressable RGB and RGB LED headers, providing users with a high degree of customization and flexibility.
