Product Description

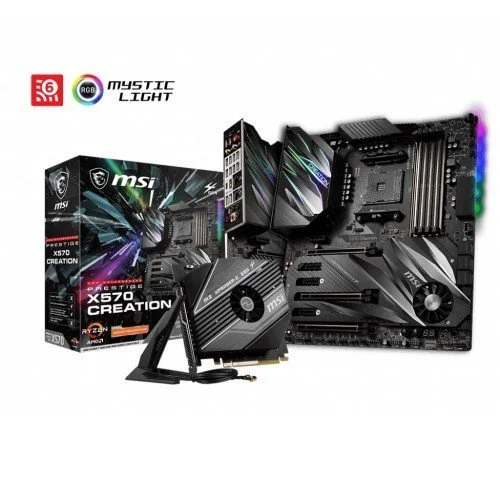

Engineered by MSI, this motherboard is designed for **AM4** socket processors, built on the **X570** chipset, featuring a **E-ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **49,500 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-02086
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
Chipset
AMD X570 Chipset
Form Factor
12 in. x 10.7 in. (30.5 cm x 27.2 cm) E-ATX Form Factor
Expansion Slots
PCI
2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5) 2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5) 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0, x8/x8 mode 2nd Gen AMD Ryzen support PCIe 3.0x16/x0, x8/x8 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8/x0 mode 1x PCIe 4.0/3.0 x16 slot (PCI_E7, supports x4 mode) 4x PCIe 2.0 x1 slots
M.2 Socket
M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
Memory
Type
DDR4 Dual channel memory architecture
Slots
4
Supported Memory
3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Mamory
128GB
Graphics
Graphics
MULTI-GPU Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology
Connector & Ports
USB (s)
AMD X570 Chipset 1x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector 12x USB 3.2 Gen1 (SuperSpeed USB) ports (8 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors) 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Type-A and Type-C port on the back panel 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s)
1x Intel I211AT Gigabit LAN controller 1x Aquantia AQC107 10-Gigabit LAN controller WIFI & BLUETOOTH Intel Wi-Fi 6 AX200 The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps Supports Bluetooth 5
Supported Storage
AMD X570 Chipset 4x SATA 6Gb/s ports (SATA1-SATA4) 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices ASMedia ASM1061 2x SATA 6Gb/s ports (SATA5, SATA6)
Audio
Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output
Internal I/O Ports
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen2 Type-C port 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 7x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 2x 2-pin Thermal Sensors connectors 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector
Warranty Information
Manufacturing Warranty
03 year warranty
