Product Description

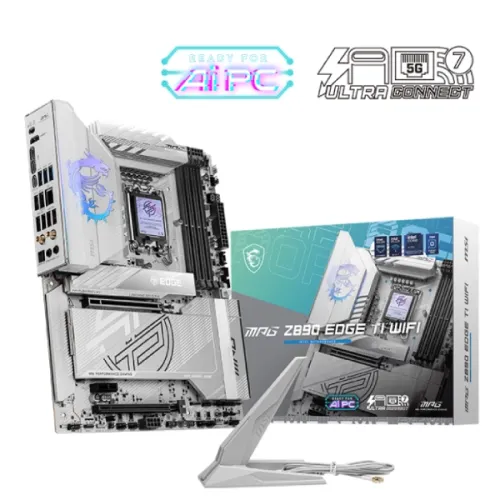

Unlock Unparalleled Performance with the MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard
The MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard is a powerhouse designed for gamers, enthusiasts, and professionals who demand the best. Built on the latest Intel Z890 chipset, this motherboard offers exceptional performance, cutting-edge features, and seamless connectivity.
Key Features and Performance Highlights
- Support for Intel Core Ultra Processors (Series 2) for unparalleled processing power and performance
- Advanced DDR5 Memory with up to 256GB capacity and overclocking speeds reaching 9200+ MT/s
- Five High-Speed M.2 Slots for ultra-fast storage, including support for PCIe 5.0 SSDs
- Integrated Intel Killer BE1750x Wi-Fi 7 and 5G LAN for superior networking performance
- Comprehensive I/O Panel with USB 20Gbps Type-C and multiple high-speed USB ports
- Realtek ALC1220P Audio for exceptional audio quality
Advanced Technologies and Features
PCIe 5.0 Technology delivers unmatched bandwidth for next-generation GPUs, while onboard Thunderbolt 4 ports offer transfer speeds up to 40Gbps and support for 8K displays. The MSI MPG Z890 EDGE TI WIFI Motherboard also features EZ Debug LEDs and robust customization options for RGB lighting, making it an outstanding choice for gaming, content creation, and high-performance computing.
Part ID: #CAN-01167
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard
|
In Stock | 58,500 | 1 week ago | |
|
Ultra Technology
MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard
|
In Stock | 59,900 | 4 hours ago | |
|
Creatus Computer
MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard
|
In Stock | 59,999 | 4 hours ago | |
|
Skyland BD
MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard
|
In Stock | 60,000 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports Intel Core Ultra Processors (Series 2)
Chipset
INTEL Z890
Form Factor
ATX (243.84mmx304.8mm)
Audio
Realtek® ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) • PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4
M.2 Socket
5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices *Please refer to the manual for M.2 SSD heatsink restrictions.
Memory
Type
DDR5
Slots
4x DDR5 UDIMM, Maximum Memory
Supported Memory
Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
2x Type-C DisplayPort ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
USB (s)
1x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN Port (s)
1x Intel® Killer™ E5000B 5G LAN
Wireless Communication module
Intel® Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage
5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
LED FEATURE 4x EZ Debug LED 1x EZ Digit Debug LED
Warranty Information
Manufacturing Warranty
3 year warranty
Key Features
Model
MPG Z890 EDGE TI WIFI
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
Graphics Output
1x HDMI, 2x Type-C DisplayPort
Features
5x M.2, Intel Wi-Fi 7
Part ID: #CAN-01167
Last Updated: 1 month ago
