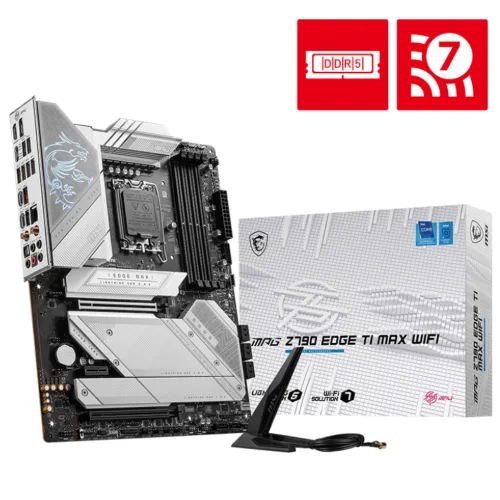

MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard

Product Description

Motherboard for Enthusiasts and Gamers

The MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard is a premium choice for gamers and PC enthusiasts seeking unparalleled performance and features. With its advanced technology and robust design, this motherboard delivers exceptional power, speed, and reliability, making it the perfect foundation for your high-end gaming rig or content creation station.

Main Features and Specifications

The MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard boasts the following key features:

Support for Intel Core 14th/13th/12th Gen Processors and Intel Pentium Gold and Celeron Processors for the LGA 1700 socket
PCIe 5.0 slot, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2x2 for lightning-fast storage and data transfer
Support for DDR5 Memory at speeds of up to 7800+(OC) MHz for exceptional gaming performance
2.5G LAN and Wi-Fi 7 Solution for a secure, reliable, and fast network connection
AUDIO BOOST 5 for studio-grade sound quality and an immersive gaming experience

Advanced Technologies and Features

The MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard features several advanced technologies and features, including:

Power Architecture

The motherboard boasts a 16+1+1 Mirrored Power Arrangement, two 8-pin CPU power connections, Core Boost, and Memory Boost, providing an increased power architecture for stable and efficient performance.

Premium Thermal Solution

The motherboard features a premium thermal solution, including a larger heatsink with heat-pipe, MOSFET thermal pads certified for 7W/mk, extra choke thermal pads, and M.2 Shield Frozr, ensuring great performance and a non-stop gaming experience.

Part ID: #CAN-01395 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily

Retailer	Stock Status	Price	Last Checked	Action
Star Tech MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard	In Stock	Call for Price	1 week ago	Buy Now
TechLand BD MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard	In Stock	43,500	5 hours ago	Buy Now
Ultra Technology MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 DDR5 ATX Motherboard	In Stock	43,500	4 hours ago	Buy Now
Computer Village MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard	In Stock	43,700	5 hours ago	Buy Now
Binary Logic MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX MOTHERBOARD	Check Stock	Call for Price	5 hours ago	Buy Now
PC House MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard	Check Stock	44,000	5 hours ago	Buy Now
UCC MSI MPG Z790 EDGE TI MAX WIFI LGA 1700 DDR5 ATX Motherboard	Check Stock	44,900	5 hours ago	Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700

Chipset INTEL Z790

Form Factor ATX 243.84mmx304.8mm

Audio Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

M.2 Socket 5x M.2 slots

Memory

Type DDR5

Slots 4 x DIMM

Supported Memory Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory

Maximum Memory 192GB

Graphics

Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*

Connector & Ports

HDMI 1x HDMI 2.1

Display Port (s) 1x DisplayPort 1.4

USB (s) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)

LAN Port (s) Intel 2.5Gbps LAN

Wireless Communication module Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.4**, MLO, 4KQAM

Supported Storage 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 8x SATA 6G

RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x ARGB+FAN Header (JAF_1) 1x USB4 card connector (JTBT_U4_1, supports RTD3)

TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 4x EZ Debug LED 1x EZ LED Control switch

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model MPG Z790 EDGE TI MAX WIFI

Supported CPU 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
