Status
In Stock
4 stores
Lowest Deal
34,500 BDT
Best Deal
Price Range
Single price listing
Product Description
Unlock Unmatched Gaming Performance

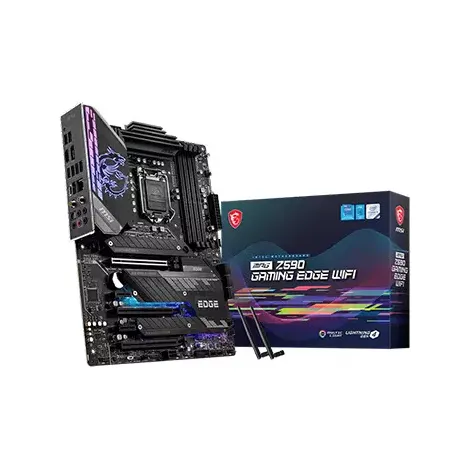

Engineered for the most demanding gamers and PC enthusiasts, the MSI MPG Z590 Gaming EDGE WiFi motherboard is designed to deliver exceptional speed, agility, and reliability. With its cutting-edge features and robust build, this motherboard is the perfect companion for your 10th and 11th Gen Intel Core processors.
Key Features and Benefits- Supports 10th and 11th Gen Intel Core processors for LGA 1200 sockets
- DDR4 memory up to 5333 (OC) MHz for lightning-fast performance
- PCIe 4.0 and PCIe 3.0 support for seamless data transfer and storage
- Intel I225V 2.5Gbps LAN controller for fast and reliable networking
- High-quality audio with Realtek ALC4080 Codec and 7.1-Channel High Definition Audio
The MSI MPG Z590 Gaming EDGE WiFi motherboard features a range of innovative technologies designed to optimize performance and cooling. These include Core Boost, DDR4 Boost, and a premium heating solution with extended heat pipe radiators and 7W/μMOSFET thermocouples. Additionally, the motherboard includes Mysterious Light, a customizable lighting system with 16.8 million colors and 29 effects.
Connectivity and ExpansionThe motherboard offers a comprehensive range of connectivity options, including 6x SATA 6Gb/s ports, 3x M.2 slots, and 4x USB 3.2 Gen 2 ports. The Intel Wi-Fi 6E AX210 wireless module is pre-installed and supports MU-MIMO TX/RX, 2.4GHz/ 6GHz1 (160MHz) up to 2.4Gbps, and 802.11 a/ b/ g/ n/ ac/ ax standards.
Part ID: #CAN-01727
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Nexus Computer
MSI MPG Z590 GAMING EDGE WIFI Motherboard
|
In Stock | 34,500 | 4 hours ago | |
|
PC House
MSI MPG Z590 GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard
|
Check Stock | 28,246 | 4 hours ago | |
|
Creatus Computer
MSI MPG Z590 Gaming EDGE WiFi 10th Gen and 11th Gen ATX Motherboard
|
Check Stock | 35,400 | 1 week ago | |
|
TechLand BD
MSI MPG Z590 Gaming EDGE WiFi 10th Gen and 11th Gen ATX Motherboard
|
Check Stock | 35,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Intel I225V 2.5Gbps LAN controller
USB
Intel® Z590 Chipset 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors) 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel) Hub-GL850G 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors)
HDMI
HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
WiFi
Intel Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.22, FIPS, FISMA
Audio
Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Slots
3x PCIe x16 slots Support x16/x4/x4 PCI_E1 (From CPU) Supports up to PCIe 4.0 for 11th Gen Intel CPU Supports up to PCIe 3.0 for 10th Gen Intel CPU PCI_E3 & PCI_E5 (From Z590 Chipset) Support up to PCIe 3.0 2x PCIe 3.0 x1 slots (From Z590 Chipset)
Memory
4x DDR4 memory slots, support up to 128GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Chipset
Intel Z590 Chipset
Graphics
HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Warranty
3 Year
Dimension
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Multi-GPU
Supports 3-Way AMD CrossFire Technology
Form Factor
ATX
Supported CPU
Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200
Supported Storage
6x SATA 6Gb/s ports (From Z590 Chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel CPU Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21 & M2_32 slot (From Z590 Chipset) Support up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready3 Supports Intel Smart Response Technology for Intel Core processors
External I/O Ports
DisplayPort USB 3.2 Gen 1 5Gbps Type-A 2.5G LAN Wi-Fi/Bluetooth Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF Out
Internal I/O Ports
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3)
Part ID: #CAN-01727
Last Updated: 1 month ago
