Product Description

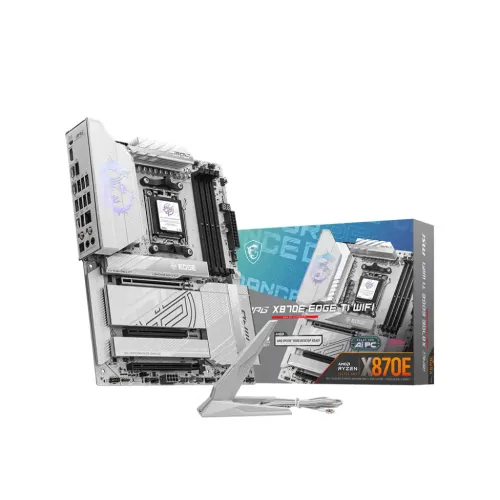

MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard
Unlock Unparalleled Performance with the MSI MPG X870E EDGE TI WIFI
This high-performance motherboard is designed for gamers, creators, and PC enthusiasts who demand the best. Equipped with the latest AMD X870E chipset and support for Ryzen 9000, 8000, and 7000 Series desktop processors, this motherboard delivers unparalleled performance, cutting-edge features, and future-proof connectivity.
Key Features and Benefits
- Supports up to 256GB of DDR5 RAM with overclocking speeds reaching DDR5-8400+ MT/s
- Three PCIe x16 slots, including one PCIe 5.0 x16 slot for maximum bandwidth
- Four M.2 slots, including two PCIe 5.0 x4 slots, for ultra-fast storage
- Realtek ALC4080 codec for 7.1-channel high-resolution sound with S/PDIF output
- Realtek 8126 5G LAN and Wi-Fi 7 for multi-gig speeds up to 5.8Gbps
- Extensive RGB connectivity with JARGB V2 and JRGB headers for full customization
Exclusive Technologies and Features
MSI's Innovative Cooling, Audio, and Connectivity Solutions
The MSI MPG X870E EDGE TI WIFI motherboard features a range of exclusive technologies and features, including advanced cooling solutions, high-end audio capabilities, and cutting-edge connectivity options. With its robust power delivery system, optimized PCB design, and premium components, this motherboard is built to deliver exceptional performance and reliability.
Specifications
Form Factor: ATX, Dimensions: 243.84mm x 304.8mm
Chipset: AMD X870E, CPU Support: Ryzen 9000, 8000, and 7000 Series desktop processors
Memory: 4x DDR5 UDIMM slots, Maximum Memory: 256GB, Supported Memory: DDR5 8400-5600 (OC) MT/s
Graphics: 1x HDMI 2.1, 2x Type-C DisplayPort, USB4 ports for high-resolution display options
Part ID: #CAN-01405
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
TechLand BD
MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard
|
In Stock | 50,900 | 4 hours ago | |
|
Ultra Technology
MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard
|
In Stock | 51,900 | 4 hours ago | |
|
Creatus Computer
MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard
|
In Stock | 52,199 | 4 hours ago | |
|
Skyland BD
MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard
|
In Stock | 52,300 | 3 hours ago | |
|
PCB Store
MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard
|
Check Stock | 54,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD X870E
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-bit/384 kHz playback on the front panel Supports S/PDIF output
Expansion Slots
PCI
3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket
4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8400+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
2x Type-C DisplayPort
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 5x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN Port (s)
1x Realtek 8126 5G LAN
Wireless Communication module
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage
4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G M.2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors) The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
RAID
Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Digi-Debug LED
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
MPG X870E EDGE TI WIFI
Supported CPU
Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM
4x DDR5, Up to 8400-5600 (OC) MT/s
Graphics Output
1x HDMI, 2x Type-C DisplayPort
Features
1x Realtek 5G LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01405
Last Updated: 1 month ago
