Status
In Stock
6 stores
Lowest Deal
39,100 BDT
Best Deal
Price Range
39,100 to 40,500 BDT
Save 3%
Product Description

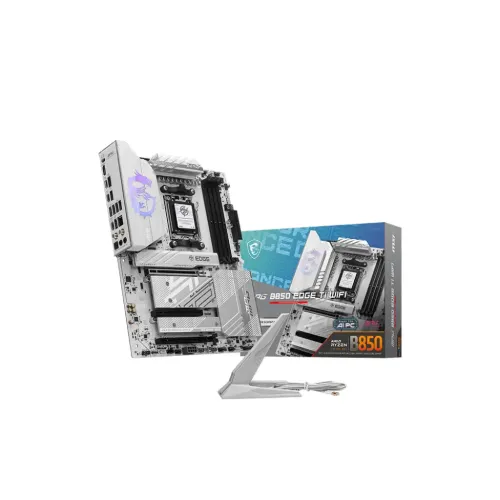

Unlock Unparalleled Performance with the MSI MPG B850 EDGE TI WIFI Motherboard
Designed for enthusiasts and gamers seeking to construct a powerful system, the MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard is engineered to deliver exceptional computing experiences. With its cutting-edge features and future-proof design, this motherboard is the perfect choice for those who demand the best.
Key Features and Benefits
- Full compatibility with AMD Ryzen 9000, 8000, and 7000 Series desktop CPUs via the AM5 socket
- Supports up to 256GB of DDR5 UDIMM memory at speeds ranging from 5600 MT/s (JEDEC) to 8400 MT/s (OC)
- Four M.2 slots with PCIe 5.0 and PCIe 4.0 compatibility for fast storage and data transfer
- Realtek 8126 5G Ethernet, Wi-Fi 7, and Bluetooth 5.4 for seamless connectivity
- Onboard HDMI supporting up to 8K resolution (depending on the CPU)
Advanced Technologies and Proprietary Features
The MSI MPG B850 EDGE TI WIFI Motherboard boasts a range of sophisticated features, including:
- AMD EXPO compatibility for enhanced memory capabilities
- RAM overclocking and dual-channel setups for improved performance
- RAID 0, RAID 1, and RAID 10 configurations for M.2 NVMe storage devices (RAID 10 supported by Ryzen 9000/7000 series CPUs)
- Realtek ALC4080 Codec for high-quality 7.1-channel audio
Experience the Future of Computing with the MSI MPG B850 EDGE TI WIFI Motherboard
Part ID: #CAN-01135
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
MSI MPG B850 EDGE TI WIFI DDR5 AM5 ATX Motherboard
|
In Stock | 39,100 | 4 hours ago | |
|
Creatus Computer
MSI MPG B850 EDGE TI WIFI AM5 ATX AMD Motherboard
|
In Stock | 39,900 | 4 hours ago | |
|
Ultra Technology
MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
|
In Stock | 39,900 | 4 hours ago | |
|
Star Tech
MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
|
In Stock | 40,400 | 1 week ago | |
|
PC House
MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
|
In Stock | 40,490 | 4 hours ago | |
|
Skyland BD
MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
|
In Stock | 40,500 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD B850
Form Factor
ATX Form Factor 304.8 x 243.84mm
Audio
Realtek ALC4080 7.1 Channel USB High-Performance Audio
Expansion Slots
PCI
Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket
4 x M.2
Memory
Type
DDR5
Slots
4 x UDIMM
Supported Memory
max. 256GB, DDR5 Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8400+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory
256GB
Graphics
Graphics
1 x HDMI port Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 3x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN Port (s)
1x Realtek 8126 5G LAN
Wireless Communication module
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G M.2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M.2_2 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600 / 8400 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
RAID
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU
Audio
1 x Audio jacks
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Digit Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty
3 Years Warranty
Key Features
Model
MPG B850 EDGE TI WIFI
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
Supported RAM
4x DDR5, up to 256GB, 8400+ MT/s (OC)
Graphics Output
1x HDMI 2.1
Features
Realtek 8126 5G Ethernet, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01135
Last Updated: 1 month ago
